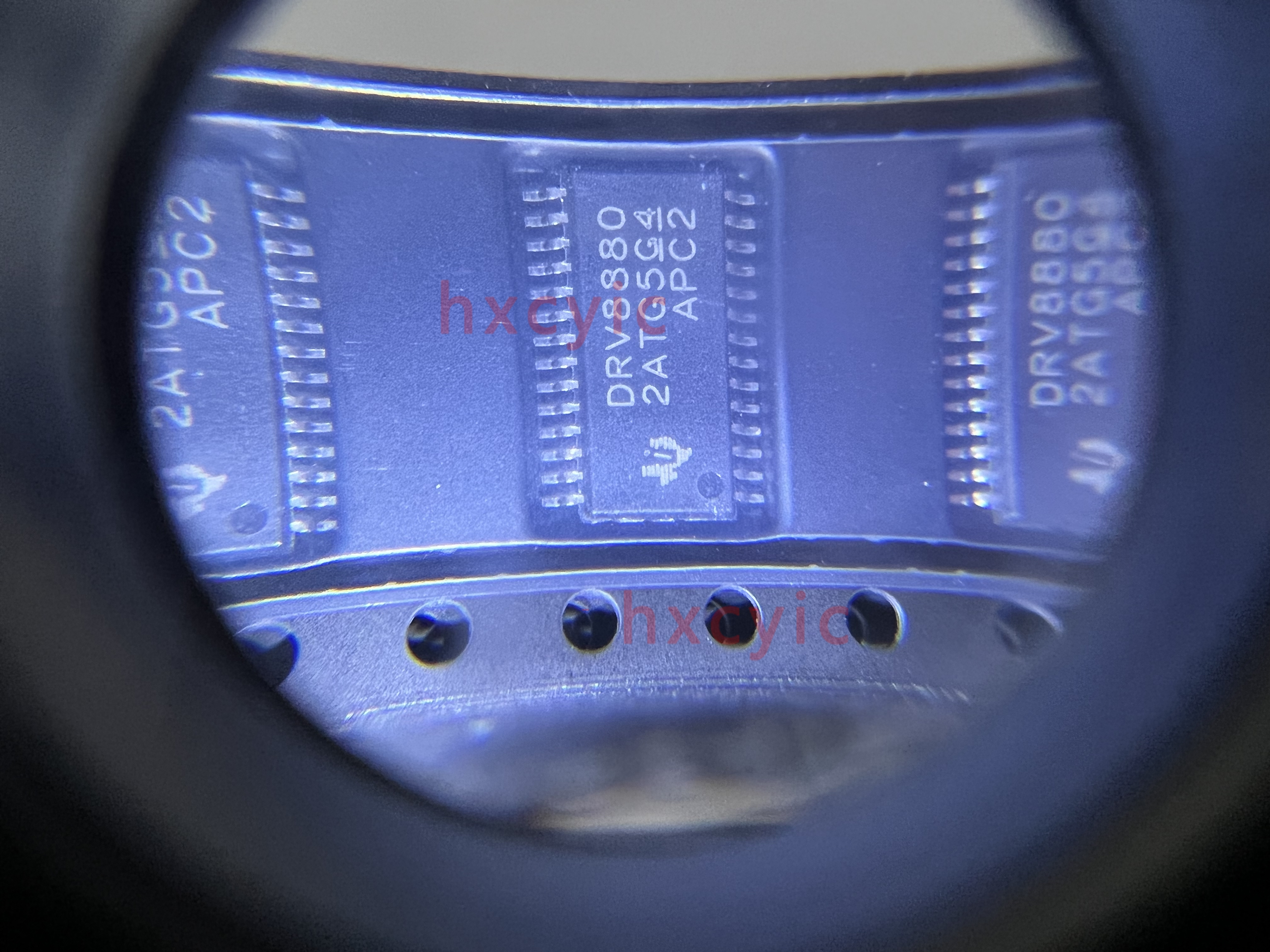

DRV8880 is a bipolar stepping motor driver suitable for industrial applications. The device has two N-channel power MOSFET) H-bridge drivers and a micro-stepping indexer. DRV8880 can drive a full-scale current of up to 2.0A or a root mean square (rms) current of 1.4A (using an appropriate printed circuit board (PCB) grounding layer for heat dissipation, the voltage is 24V, and TA = 25°C).

AutoTune™ can automatically adjust the stepper motor to achieve the best current regulation performance, and can compensate for motor changes and aging problems. In addition, the device also provides three attenuation modes: slow, fast and mixed.

STEP/DIR pin provides a simple control interface. The device can be configured in various stepping modes, from full stepping mode to 1/16th stepping mode. With the dedicated NSEEP pin, the device can provide a low-power sleep mode, thus achieving ultra-low static current standby.

The device has the following built-in protection functions: undervoltage, charge pump failure, overcurrent, short circuit and overheating protection. The fault condition is indicated by the nFAULT pin.

Micro stepping motor driver
STEP/DIR interface
Up to 1/16 micro-stepping indexer
Non-cyclic and standard step mode
Operating power supply voltage range from 6.5V to 45V
Multiple attenuation modes can support any motor.
AutoTune™
Mixed attenuation
Slow attenuation
Rapid attenuation
Adaptive blanking time of smooth step
Pulse width modulation (PWM) chop with configurable turn-off time
10, 20 or 30µs off time
3.3V, 10mA LDO regulator
Low current sleep mode (28µA)
Small package size
28 HTSSOP (PowerPAD™)
28 WQFN

Protective characteristics
VM undervoltage locking (UVLO2)
Logic undervoltage (UVLO1)
Charge pump voltage (CPUV)
Overcurrent protection (OCP)
Latch overcurrent protection (OCP) mode
Retry overcurrent protection (OCP) mode.
Thermal shutdown (TSD)
Fault condition indication pin (nFAULT)
