DRV883x device series provides an integrated motor driver solution for cameras, consumer products, toys and other low-voltage or battery-powered motion control applications. This device can drive a DC motor or other devices (such as solenoid). The output driver module consists of an N-channel power MOSFET configured as an H-bridge to drive the motor winding. An internal charge pump is used to generate the required gate driving voltage.

The DRV883x device family can provide output current up to 1.8A. It runs on the motor power supply voltage between 0 and 11V and the device power supply voltage between 1.8V and 7 V..

DRV8837 has a PWM (IN/IN) input interface; The DRV8838 device has a PH-EN input interface. Both interfaces are compatible with industry standard devices.

It also provides internal shutdown functions for over-current protection, short-circuit protection, under-voltage locking and overheating protection.

H-bridge motor driver
Drive DC motors or other loads.
Low MOSFET on-resistance: HS+LS 280mΩ
1.8A Maximum driving current
Independent motor and logic power supply pins:
Motor VM: 0 to 11 V
Logic VCC：1.8 to 7 V
PWM or PH-EN interface
DRV8837: PWM, IN1 and IN2
Drv 8838: ph and EN
Low power sleep mode, the maximum sleep current is only 120nA.
NSLEEP pin
Small package size

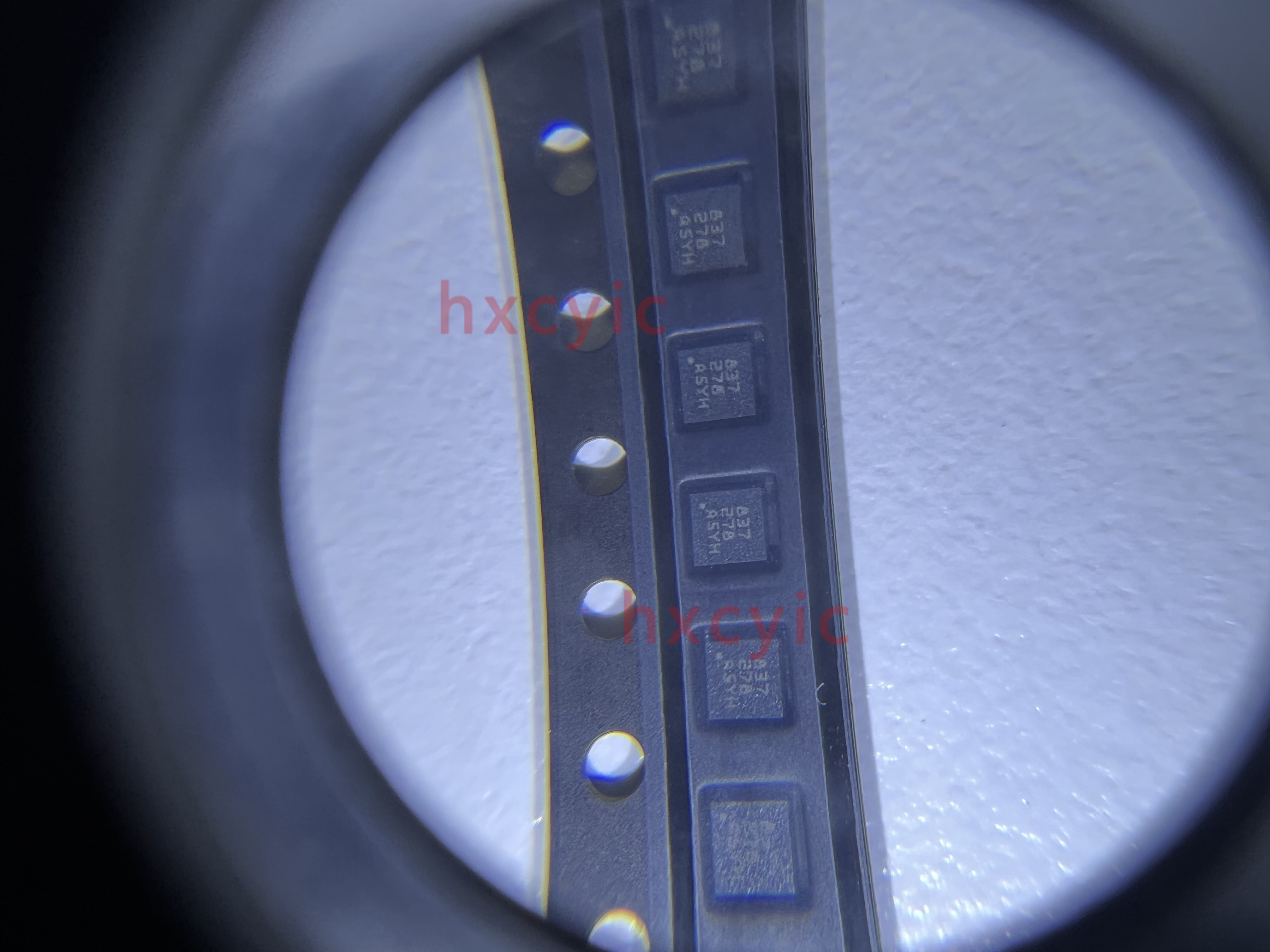

8-lead WSON package with thermal pad
2.0mm × 2.0mm
Protective characteristics
VCC undervoltage lockout (UVLO)
Overcurrent protection (OCP)
Thermal shutdown (TSD)
