DRV8803 provides a four-channel low-side driver with overcurrent protection function. The device clamps the turn-off transient generated by the resistive load through the built-in diode, and can be used to drive unipolar stepping motors, DC motors, relays, solenoids or other loads.

If DRV8803 is packaged in SOIC (DW), at 25°C, each channel can provide a continuous output current of up to 1.5A (one channel is on) or 800mA (all channels are on). If the device is packaged in HTSSOP (PWP), at 25°C, each channel can provide a continuous output current of up to 2A (one channel is on) or 1A (four channels are on). With SOT-23-THN (DYZ) package, DRV8803 can provide a continuous output current of up to 1.9A (one channel is on) or up to 900mA (all channels are on) per channel at 25°C and with proper heat dissipation of printed circuit board (PCB).

The device is controlled by a simple parallel interface.

The built-in shutdown function can provide over-current protection, short-circuit protection, under-voltage lockout and overheating protection, and the specific fault is indicated by the fault output pin.

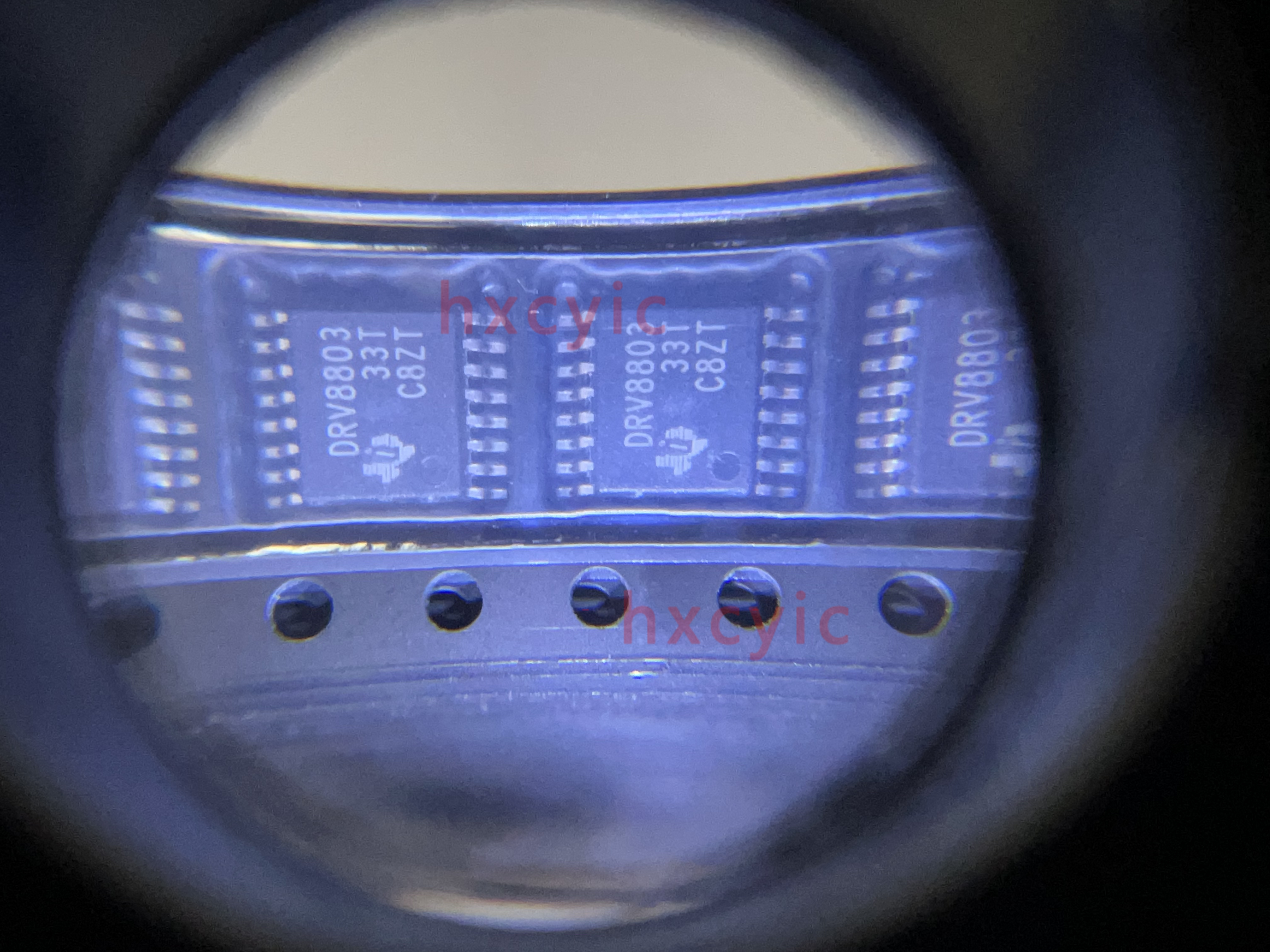

DRV8803 is packaged in 20-lead heat-resistant enhanced SOIC, 16-lead HTSSOP and 16-lead SOT-23-THN (environmental protection: RoHS, antimony/bromine-free).

Characteristics of DRV8803
Protected quad-channel low-side driver
Four NMOS FET with overcurrent protection function
Integrated inductance clamping diode
parallel interface
DW package: 1.5A (single channel on) /800mA (four channels on) maximum driving current per channel (at 25°C)
PWP package: 2A (single channel on) /1A (four channels on) maximum driving current per channel (at 25°C and with proper PCB heat dissipation)
DYZ package: 1.9A (single channel on) /0.9A (four channels on) maximum driving current per channel (at 25°C, with proper PCB heat dissipation).
8.2V to 60V operating power supply voltage range
Thermal enhanced surface mount package
