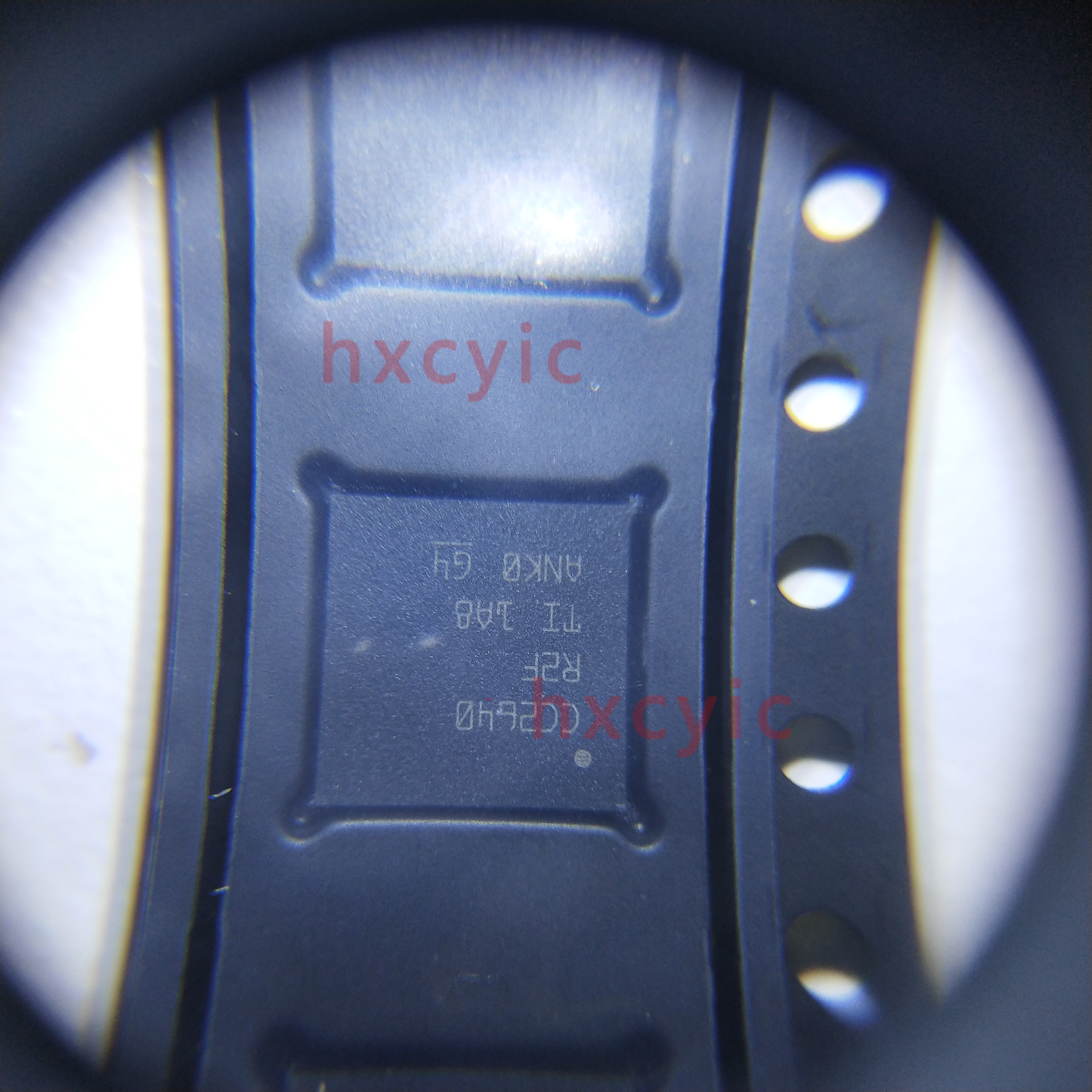

CC2640R2F device is a 2.4GHz wireless microcontroller (MCU), which supports low-power Bluetooth® 5.1 and proprietary 2.4GHz applications. The device is optimized to realize low-power wireless communication and advanced sensing in building security systems, HVAC, asset tracking and medical markets, and applications requiring industrial performance. The outstanding features of the device include: support for Bluetooth 5.1 features: LE coded PHY (long distance), LE 2Mb PHY (high speed), broadcast expansion, multiple broadcast sets, and backward compatibility and support for Bluetooth 5.0 and early low-power specifications. Simple Link CC 2640R2F Software Development Kit (SDK) comes with a fully qualified Bluetooth 5.1 software protocol stack for developing applications on the powerful Arm® Cortex®-M3 processor. Extend the battery life of wireless applications, and the low standby current is 1.1µA when the RAM is fully maintained. Advanced detection is realized by the programmable and autonomous ultra-low power sensor controller CPU with fast wake-up function. For example, the sensor controller can perform 1Hz ADC sampling at 1 A system current. The software-controlled dedicated radio controller (Arm® Cortex®-M0) provides flexible low-power RF transceiver functions and supports multiple physical layers and RF standards (such as real-time positioning (RTLS) technology). Excellent radio sensitivity and robustness (selectivity and blocking) performance, suitable for low-power Bluetooth, with -103dBm at 125kbps (LE coded PHY). CC2640R2F device is a part of SimpleLink™ microcontroller (MCU) platform, which includes Wi-Fi, low-power Bluetooth, Thread, ZigBee®, Sub-1GHz MCU and host MCU. They share a common and easy-to-use development environment, including single-core software development kit (SDK) and rich tool sets. With the one-time integrated SimpleLink™ platform, any combination of devices in the product portfolio can be added to your design, thus achieving 100% code reuse when the design requirements change. For more information, please visit the SimpleLink™ MCU platform.



2 Application of Home and Building Automation–Networked Electrical Appliances–Lighting–Smart Lock–Gateway–Security System Industry–Factory Automation–Asset Tracking and Management–HMI–Access Control Electronic Sales Terminal (EPOS)–Electronic Shelf Label (ESL) Health and medical treatment–electronic thermometer–SpO2–blood glucose monitor and blood pressure monitor–weighing scale–hearing aid sports and fitness equipment–wearable fitness and activity monitor–smart tracker–patient monitor–fitness machine HID–games–pointing device (wireless keyboard and mouse).
