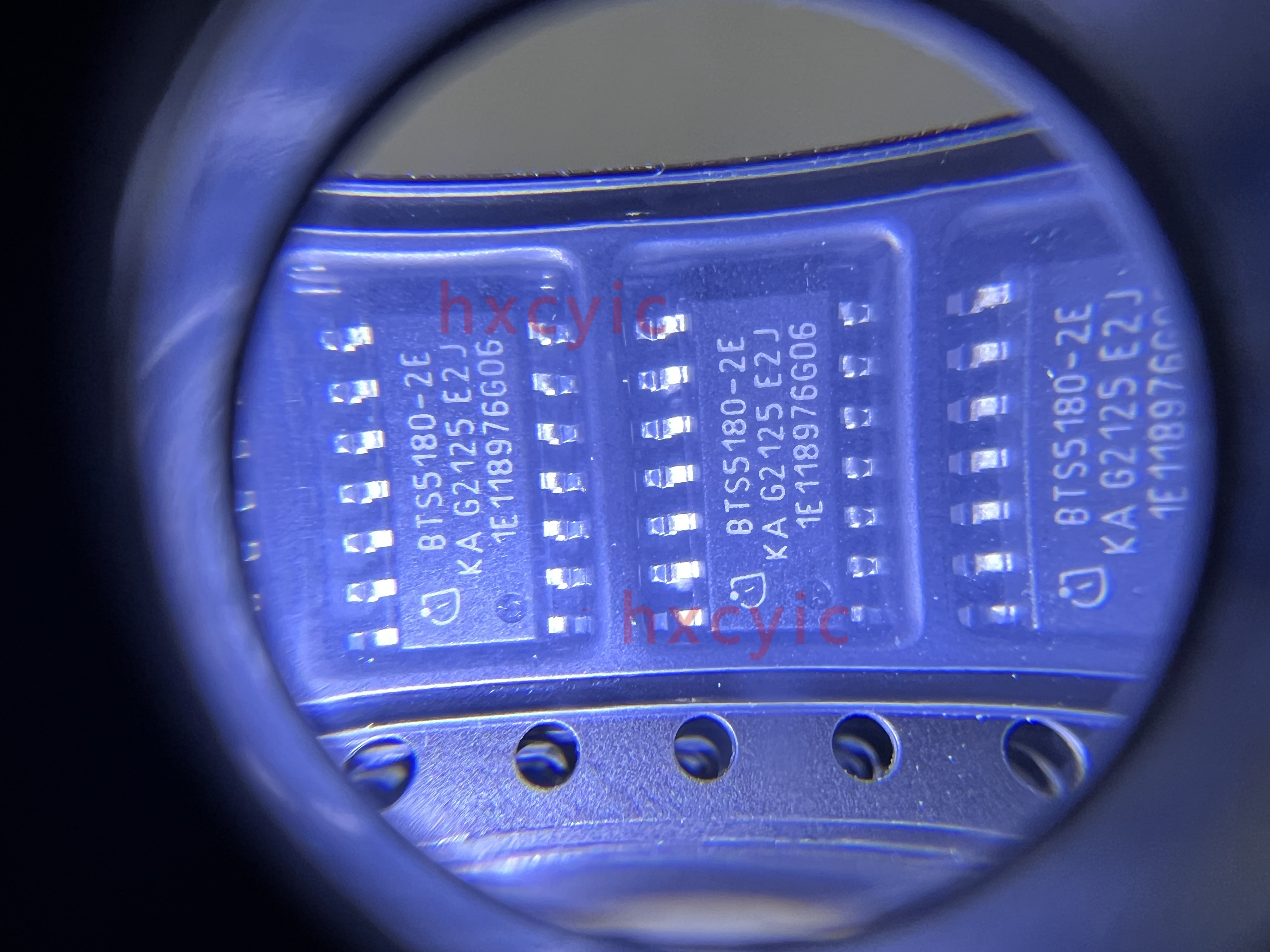

The BTS5180-2EKA is a 180 mΩ dual channel Smart High-Side Power Switch, embedded in aPG-DSO-14-40 EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor isbuilt by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology.It is specially designed to drive lamps up to 1 * 5W, as well as LEDs in the harsh automotive environment.

Application• Suitable for resistive, inductive and capacitive loads• Replaces electromechanical relays, fuses and discrete circuits• Most suitable for loads with high inrush current, such as lampsBasic Features• Two channel device• Very low stand-by current• 3.3 V and 5 V compatible logic inputs• Electrostatic discharge protection (ESD)• Optimized electromagnetic compatibility• Logic ground independent from load ground• Very low power DMOS leakage current in OFF state• Green product (RoHS compliant)• AEC qualified
