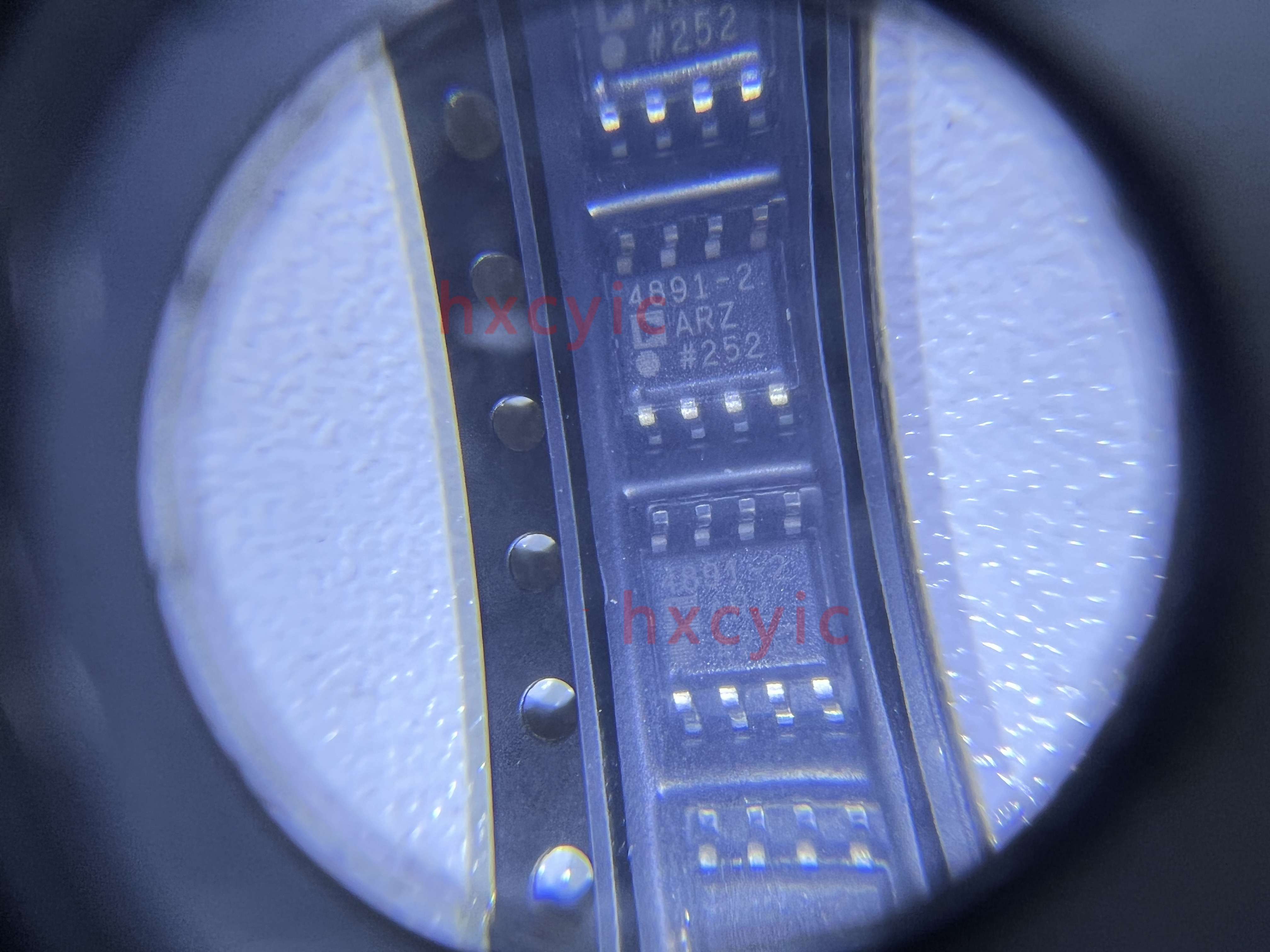

The ADA4891-2ARZ-R7 is a low-cost, high-speed, rail-to-rail amplifier
The ADA4891-2 (dual), are CMOS, high speed amplifiers that offer high performance at a low cost. The amplifiers feature true single-supply capability, with an input voltage range that extends 300 mV below the negative rail.
In spite of their low cost, the ADA4891 family provides high performance and versatility. The rail-to-rail output stage enables the output to swing within 50 mV of each rail, enabling maximum dynamic range.
The ADA4891 family of amplifiers is ideal for imaging applications, such as consumer video, CCD buffers, and contact image sensor buffers. Low distortion and fast settling time also make them ideal for active filter applications.
The ADA4891-2/are available in a wide variety of packages.
The ADA4891-2 is available in 8-lead SOIC and 8-lead MSOP packages.
The amplifiers are specified to operate over the extended temperature range of −40°C to +125°C.
Features
-
High speed and fast settling
−3 dB bandwidth: 220 MHz (G = +1)
Slew rate: 170 V/μs
Settling time to 0.1%: 28 ns -
Video specifications (G = +2, RL = 150 Ω)
0.1 dB gain flatness: 25 MHz
Differential gain error: 0.05%
Differential phase error: 0.25° -
Single-supply operation
Wide supply range: 2.7 V to 5.5 V
Output swings to within 50 mV of supply rails - Low distortion: 79 dBc SFDR at 1 MHz
- Linear output current: 125 mA at −40 dBc
-
Low power:
4.4 mA per amplifier
- Imaging
- Consumer video
- Active filters
- Coaxial cable drivers
- Clock buffers
- Photodiode preamp
- Contact image sensor and buffers
