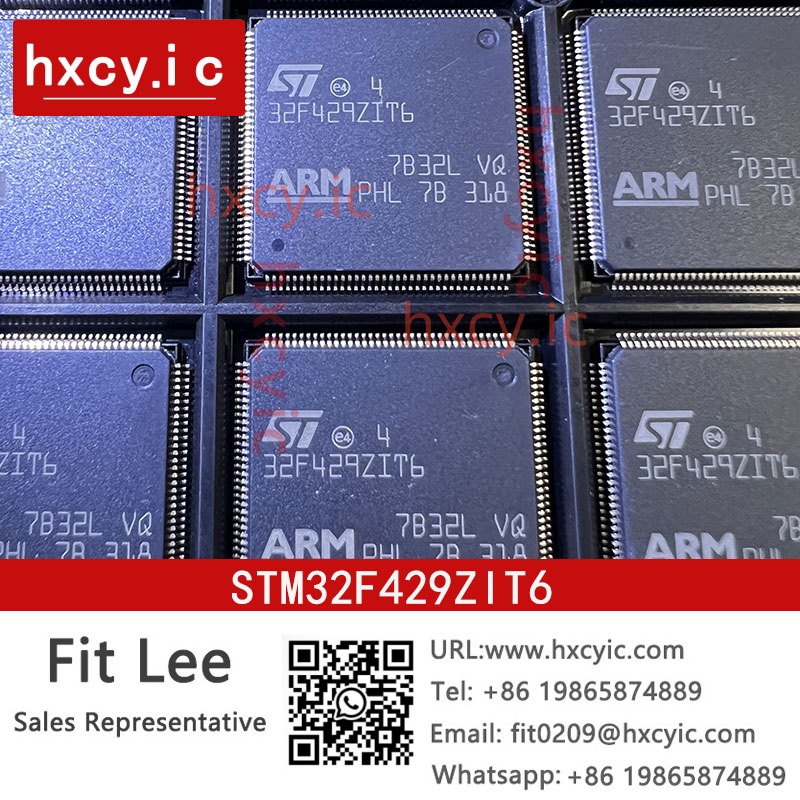

Order STMicroelectronics STM32F429ZIT6 on Hxcy.IC. Confirm available stock and prices, check the product specifications for STM32F429ZIT6,and place an order online.Contact Email:Fit0209@hxcyic.com

The STM32F427xx and STM32F429xx devices are based on high-performance Arm Cortex-M4 32-bit RISC cores, with operating frequencies up to 180 MHz. this Cortex@-M4 The core has floating-point unit (FPU) single precision and supports all Arm @ single precision data processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU) to enhance application security.
The STM32F427xx and STM32F429xx devices include high-speed embedded memory (up to 2 MB flash and 256 KB SRAM), backup SRAM up to 4 KB, and various enhanced I/O and peripheral devices connected to two APB buses, two AHB buses, and a 32-bit multi AHB bus matrix.
All devices come with three 12 bit ADCs, two DACs, one low-power RTC, and 12 general-purpose 16 bit timers, including two PWM timers for motor control and two general-purpose 32-bit timers. They also have standard and advanced communication interfaces.
Up to three I2C
Six SPI and two IS full duplex. In order to achieve audio level accuracy, l2S peripheral devices can be clock controlled through dedicated internal audio PLL or external clock to achieve synchronization.
Four USARTs plus four UART
USB OTG full speed and USB OTG high-speed with full speed capability (with ULPI),
Two CANs
.
A SAl serial audio interface
SDIO/MMC interface
Ethernet and camera interface
LCD TFT display controller
.
Chrom ART Accelerator TM.
Advanced peripheral devices include SDIO, flexible memory control (FMC) interfaces
Camera interface for CMOS image sensors. Please refer to Table 2 for the functions and peripheral device counts of STM32F427xx and STM32F429xx to understand the list of available peripheral devices on each device
Part number.
STM32F427xx and STM32F429xx devices operate at temperatures ranging from -40 to+105 ° C
Range from 1.7 to 3.6V power supply.
By using an external power monitor, the power supply voltage can be reduced to 1.7V
(See Section 3.17.2: Internal Reset Shutdown). A comprehensive energy-saving mode
Design that allows for low-power applications.
STM32F427xx and STM32F429xx devices are available in 8 packaging options, ranging from 100 pin to 216 pin. The set of peripheral devices included varies depending on the selected device.
