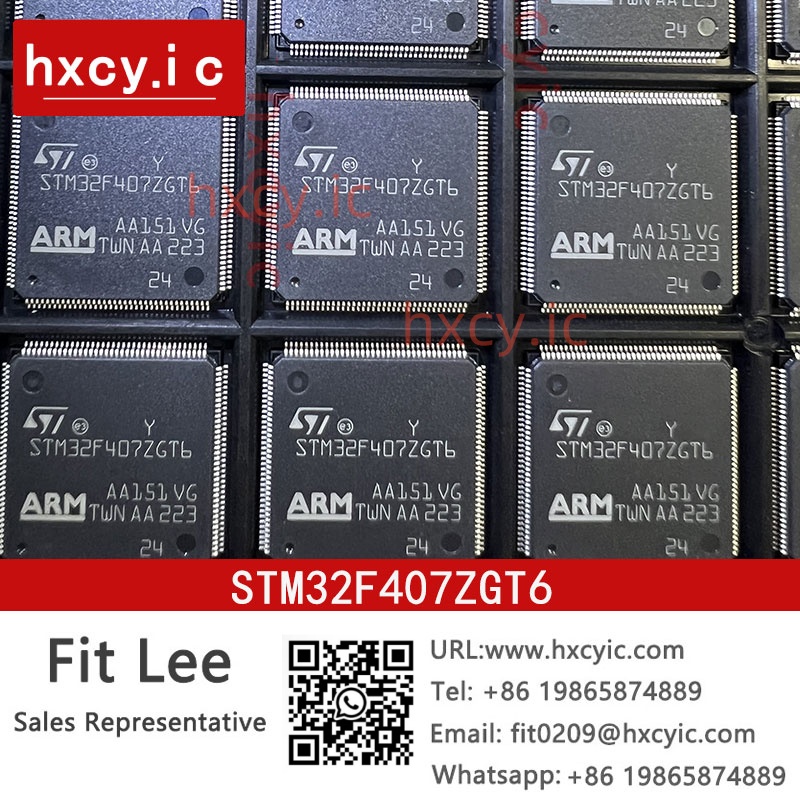

Order STMicroelectronics STM32F407ZGT6 on Hxcy.IC. Confirm available stock and prices, check the product specifications for STM32F407ZGT6,and place an order online.Contact Email:Fit0209@hxcyic.com


The STM32F405xx and STM32F407xx series are based on high-performance Arm Cortex-M4 32-bit RISC cores, with operating frequencies up to 168 MHz. The Cortex-M4 core has floating-point unit (FPU) single precision and supports all Arm single precision data processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU) to enhance application security.
The STM32F405xx and STM32F407xx series include high-speed embedded memory (up to 1 MB flash and 192 KB SRAM), backup SRAM up to 4 KB, and various enhanced I/O and peripheral devices connected to two APB buses, three AHB buses, and a 32-bit multi AHB bus matrix.
All devices come with three 12 bit ADCs, two DACs, one low-power RTC, and 12 general-purpose 16 bit timers, including two PWM timers for motor control and two general-purpose 32-bit timers. A true random number generator (RNG). They also have standard and advanced communication interfaces.
Up to three I2C
Three SPI, two IS full duplex. In order to achieve audio level accuracy, I2S peripheral devices can be clock controlled through dedicated internal audio PLL or external clock to achieve synchronization
Four USARTs and two UART
USB OTG Full Speed and USB OTG High Speed (with ULPI)
Two CANs
SDIO/MMC interface
Ethernet and camera interfaces are only applicable to STM32F407xx devices
The new advanced peripheral devices include SDIO, enhanced Flexible Static Storage Control (FSMC) interface (suitable for devices packaged with 100 pins and above), and camera interface for CMOS sensors. For a list of available peripheral devices on each part number, please refer to Table 2: STM32F405xx and STM32F407xx: Function and Peripheral Device Count.
The STM32F405xx and STM32F407xx series operate within a temperature range of -40 to+105 C for 1.8 to 3.6 V power supplies. When the device is operated using an external power monitor within the temperature range of 0 to 70 * C, the power supply voltage may drop to 1.7 V: please refer to Section: Internal Reset Shutdown. A comprehensive energy-saving mode allows for the design of low-power applications.
The STM32F405xx and STM32F407xx series offer a variety of packaged devices ranging from 64 pin to 176 pin. The set of peripheral devices included varies depending on the selected device.
These features make the STM32F405xx and STM32F407xx microcontroller series suitable for a wide range of applications:
Motor drive and application control
medical equipment
Industrial applications: PLC, inverter, circuit breaker
Printers and scanners
Alarm system, visual intercom, and HVAC system
Home audio equipment
