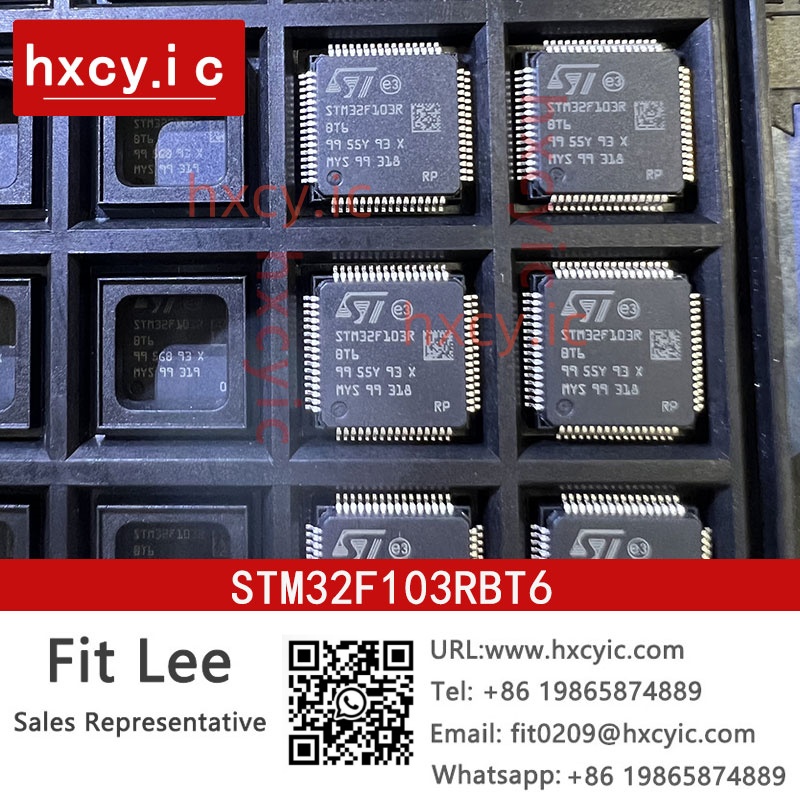

Order STMicroelectronics STM32F103RBT6 on Hxcy.IC. Confirm available stock and prices, check the product specifications for STM32F103RBT6,and place an order online.Contact Email:Fit0209@hxcyic.com

The STM32F103x8 and STM32F103xB performance series include high-performance ARM Cortex-M3 32-bit RISC cores running at 72 MHz, high-speed embedded memory (up to 128 KB flash and 20 KB SRAM), and various enhanced I/O and peripheral devices connected to two APB buses. All devices come with two 12 bit ADCs, three universal 16 bit timers, and one PWM timer, as well as standard and advanced communication interfaces: up to two ICs and SPs, three USARTs, one USB, and one CAN.
The operating voltage of the STM32F103xx medium density performance series is 2.0 to 3.6 V. It can be used in the temperature range of -40 to+85 ° C and the extended temperature range of -40 to+105 ° C. A comprehensive energy-saving mode allows for the design of low-power applications.
The STM32F103xx medium density performance series includes six different package types of devices: from 36 pins to 100 pins. Based on the selected devices, including different sets of peripheral devices, the following description outlines the complete peripheral device series proposed in this series.
These features make the STM32F103xx medium density high-performance line microcontroller series suitable for a wide range of applications:
Motor drive and application control
Medical and handheld devices
PC peripheral gaming and GPS platform
Industrial applications: PLCs, inverters, printers, and scanners
Alarm system, visual intercom, and HVAC system
Figure 1 shows a general block diagram of the device series.
