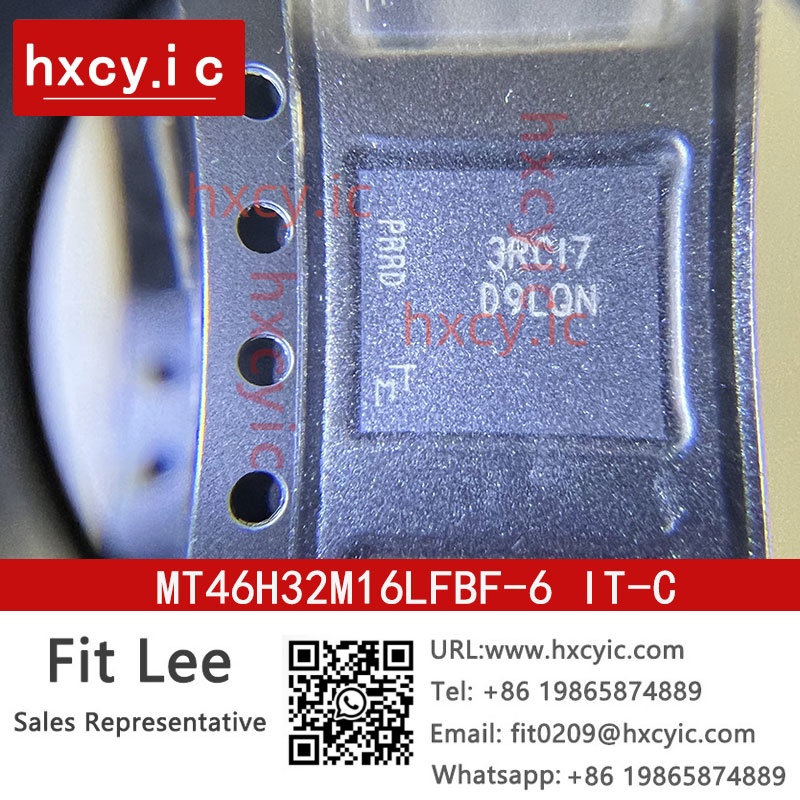

MT46H32M16LFBF-6 IT: C TR is a high-performance, low-power mobile LPDDR SDRAM chip developed by Micron, specifically designed for embedded systems and mobile devices. The following is a detailed description of its core technical parameters and characteristics:
1、 Basic parameters
Storage architecture and capacity
Total capacity: 512Mbit, organized in a 32M x 16bit format, with data storage achieved through 32M row addresses and a 16 bit data bus, supporting concurrent operations on four independent internal banks.
Data bus width: 16 bits, supporting single transmission of 16 bit data, combined with DDR mechanism to improve bandwidth efficiency.
Packaging and Physical Characteristics
Package type: 60 pin thin flat ball grid array (VF BGA), size 8mm × 9mm, height 0.65mm, pin spacing 0.8mm, suitable for high-density circuit board layout.
Pin definition: Compatible with standard LPDDR interfaces, including differential clock (CK/CK #), bidirectional data gating (DQS/DQS #), data mask (DM) and other signals.
Electrical characteristics
Working voltage: Core voltage 1.8V (allowable range 1.7V~1.95V), supports LVCMOS level standard, adapts to wide voltage fluctuation environment.
Temperature range: Industrial grade temperature range -40 ° C to+85 ° C, meeting the harsh environmental requirements of vehicle and industrial control.
2、 Performance parameters
Clock and data rate
Clock frequency: up to 166MHz, corresponding to a cycle time of 6ns, achieving a data transmission rate of 333MT/s (333 megabits per second) through DDR (Double Data Rate) mechanism.
Access time: Typical value of 5ns (fast mode) or 6.5ns (standard mode), depending on configuration parameters such as CAS delay.
delay parameter
CAS delay (CL): The typical value is CL=3 (the delay from reading commands to data output is 3 clock cycles), but in some configurations, it can be adjusted to CL=5 through the mode register.
Burst length (BL): Supports programmable burst lengths of 2/4/8/16, which can be dynamically configured through mode registers.
Power management
Self refresh mode: Supports low-power self refresh (SR) and temperature compensated self refresh (SRT), dynamically adjusting the refresh frequency through on-chip temperature sensors to ensure data integrity and reduce energy consumption.
Deep Power Down (DPD): Supports deep sleep mode to further reduce standby power consumption.
3、 Functional characteristics
Data transmission architecture
4n bit prefetching technology: prefetching 4 bits of data per clock cycle, combined with DDR mechanism to achieve 16 bit parallel transmission, improving bandwidth utilization.
Dynamic burst control: Supports fixed burst length (BL=8) and burst splitting (BC=4), which can be flexibly selected through mode registers or runtime dynamic configuration (OTF).
Signal integrity optimization
Differential clock and data gating: differential clock (CK/CK #) and bidirectional data gating (DQS/DQS #) are used to reduce signal interference and ensure high-speed transmission stability.
On Chip Terminal (ODT): Supports dynamic adjustment of terminal resistance for data, gating, and shielding signals, optimizing signal reflection and impedance matching.
Programmable parameters
Multi mode register: Configure burst type, DLL reset, write recovery time and other parameters through the mode register group (MR0-MR3) to flexibly adapt to application scenarios.
Partial Array Self Refresh (PASR): allows only partial storage areas to be refreshed, further reducing power consumption.
4、 Application Fields
Mobile devices and handheld terminals
With its low-power design and compact packaging, it is suitable for scenarios such as smartphones, tablets, wearable devices, etc. that are sensitive to battery life and size.
Industrial Control and Vehicle mounted Systems
Wide temperature support (-40 ° C to+85 ° C) and high reliability meet the needs of industrial automation equipment, in car navigation, intelligent sensors, and more.
Communication and network equipment
The data rate of 333 MT/s and 16 bit width meet the real-time data processing and forwarding requirements of devices such as routers and switches.
FPGA and Embedded Systems
As an external storage for FPGA, it is used for computationally intensive tasks such as image processing and data encryption, such as the supporting storage solution for Xilinx Spartan-6 series.
5、 Technical advantages
Compatibility: Supports a wide voltage range of 1.7V~1.95V, compatible with different power supply designs, and facilitates system integration.
Low power design: By utilizing technologies such as ASR, SRT, DPD, etc., standby power consumption is significantly reduced, extending the battery life of mobile devices.
High density integration: 60 pin VF BGA package achieves 512Mbit capacity in a small size, suitable for miniaturized devices.
6、 Precautions
Lifecycle status: This model has been gradually replaced by the new generation LPDDR2/LPDR3 products. It is recommended to evaluate alternative models (such as other products in the Micron MT46H series) or confirm inventory status with the supplier.
Configuration differences: CAS latency (CL) and access time may vary depending on specific configurations (such as burst length, mode register settings), and should be based on the official data manual.
