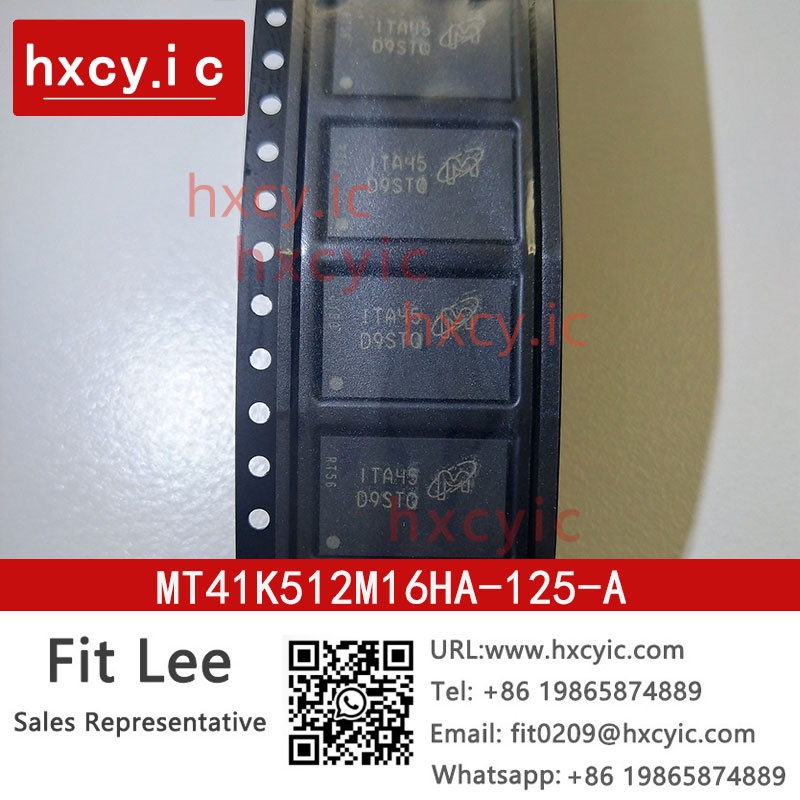

MT41K512M16HA-125:A is a DDR3L SDRAM chip launched by Micron Technology, designed specifically for high-performance and low-power scenarios. The following is a detailed description of its core technical parameters and characteristics:
1、 Basic parameters
Storage capacity and organizational form
Total capacity: 8Gb (gigabits), using a 512M (megabit) x 16bit organizational form, that is, data storage is achieved through 512M row addresses and a 16 bit data bus.
Data bus width: 16 bits, supports single transmission of 16 bit data, improves bandwidth efficiency.
Packaging and Physical Characteristics
Package type: 96 pin thin flat ball grid array (TF-BGA), compact size (such as 9mm × 14mm), suitable for high-density circuit board layout.
Pin definition: Compatible with standard DDR3L interface, supports differential clock (CK/CK #), bidirectional data gating (DQS/DQS #) and other signals.
Electrical characteristics
Working voltage: Core voltage of 1.35V (allowable range of 1.283V~1.45V), backward compatible with DDR3 1.5V voltage environment (± 0.075V), ensuring cross generation system compatibility.
Temperature range: Industrial grade temperature range -40 ° C to+95 ° C, suitable for harsh environments such as industrial control and vehicle equipment.
2、 Performance parameters
Clock and data rate
Clock frequency: up to 800MHz, corresponding to a cycle time of 1.25ns (marked as -125), with a data transmission rate of DDR3-1600MT/s (1600 Mbps transmission).
CAS delay (CL): The typical value is CL=11, which means the delay from reading commands to data output is 11 clock cycles, balancing speed and stability.
Power management
Self refresh mode: supports low-power self refresh (SR) and automatic self refresh (ASR), maintaining data integrity and reducing energy consumption in standby mode.
Temperature compensated refresh (SRT): dynamically adjust the refresh frequency based on the ambient temperature (such as shortening the refresh cycle to 32ms when above 85 ° C) to ensure data reliability.
3、 Functional characteristics
Data transmission architecture
8n bit prefetching technology: prefetching 8 bits of data per clock cycle, combined with DDR mechanism to achieve 16 bit parallel transmission, improving bandwidth utilization.
Dynamic burst control: supports fixed burst length (BL=8) and burst splitting (BC=4), and can be flexibly selected through mode register (MRS) or runtime dynamic configuration (OTF).
Signal integrity optimization
Differential clock and data gating: differential clock (CK/CK #) and bidirectional data gating (DQS/DQS #) are used to reduce signal interference and ensure high-speed transmission stability.
On Chip Terminal (ODT): Supports dynamic adjustment of terminal resistance for data, gating, and shielding signals, optimizing signal reflection and impedance matching.
Programmable parameters
Delay configuration: Supports programmable CAS read delay (CL), write delay (CWL), and additional delay (AL) to meet different system timing requirements.
Multi mode register: Configure burst type, DLL reset, write recovery time and other parameters through the mode register group (MR0-MR3) to flexibly adapt to application scenarios.
4、 Application Fields
Industrial Control and Embedded Systems
With wide temperature support and high reliability, it is suitable for scenarios with strict stability requirements such as industrial automation equipment, intelligent sensors, and car navigation.
Communication and network equipment
The data rate of 1600MT/s and 16 bit width meet the high bandwidth requirements of devices such as routers and switches, supporting real-time data processing and forwarding.
Server and Storage System
8Gb large capacity and low-power design can be used for server memory modules, supporting multitasking concurrent processing in virtualized environments.
FPGA and High Performance Computing
As an external storage for FPGA, it is used for computationally intensive tasks such as image processing and data encryption, such as the supporting storage solution for Xilinx Artix-7/Kintex-7 series.
5、 Technical advantages
Compatibility: Supports both 1.35V (DDR3L) and 1.5V (DDR3) voltages, making it convenient for upgrading old systems or cross generational mixing.
Low power design: Reduce standby power consumption and extend the battery life of mobile devices or battery powered systems through technologies such as ASR and SRT.
High density integration: Twin Die packaging technology (such as MT41K512M16HA-125 IT: A) stacks two 4Gb bare chips to achieve double capacity in the same area, making it suitable for miniaturized devices.
6、 Precautions
Packaging differences: Some sources are labeled as FBGA-96 packaging, which may actually be a variant of TF-BGA. Please refer to the official data manual for accuracy.
Lifecycle: This model has entered the end-of-life stage (EOL), and it is recommended to evaluate alternative models (such as other products in the Micron MT41K series) or confirm inventory status with the supplier.
