Order Monolithic Power Systems Inc. MP2565DN-LF-Z on Hxcy.IC. Confirm available stock and prices, check the product specifications for MP2565DN-LF-Z,and place an order online.Contact Email:Fit0209@hxcyic.com

The MP2565 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 2.5A output with current mode control for fast loop response and easy compensation.
The wide 4.5V to 50V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 12μA shutdown mode supply current allows use in battery-powered applications.
High power conversion efficiency over a wide load range is achieved by scaling down the switching frequency at light load condition to reduce the switching and gate driving losses.
The frequency foldback helps prevent inductor current runaway during startup and thermal shutdown provides reliable, fault tolerant operation.
By switching at 4MHz, the MP2565 is able to prevent EMI (Electromagnetic Interference) noise problems, such as those found in AM radio and ADSL applications.

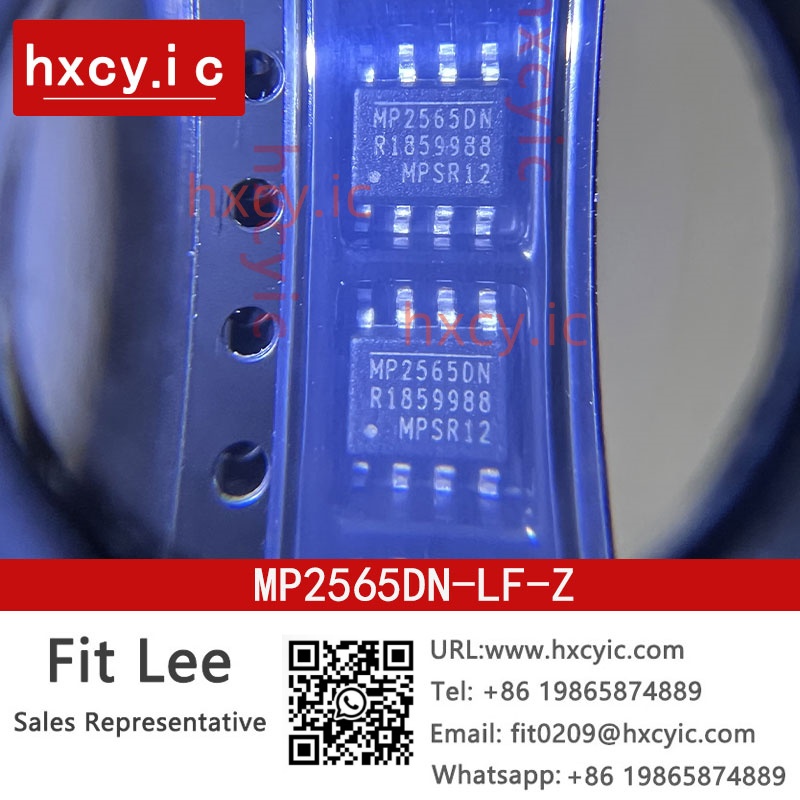

The MP2565 is available in small 3mm x 3mm QFN10 and thermally enhanced SOIC8 packages.

FEATURES
120μA Quiescent Current
Wide 4.5V to 50V Operating Input Range
220mΩ Internal Power MOSFET
Up to 4MHz Programmable Switching Frequency
High-Efficiency, Light-Load operation
Stable with Ceramic Capacitor
Internal Soft-Start
Internally Set Current Limit without external Current Sensing Resistor
Up to 95% Efficiency
Output Adjustable from 0.8V to 47V
Available in 3x3 QFN10 and Thermally Enhanced SOIC8 Packages
APPLICATIONS
High Voltage Power Conversion
Automotive Systems
Industrial Power Systems
Distributed Power Systems
Battery Powered Systems
