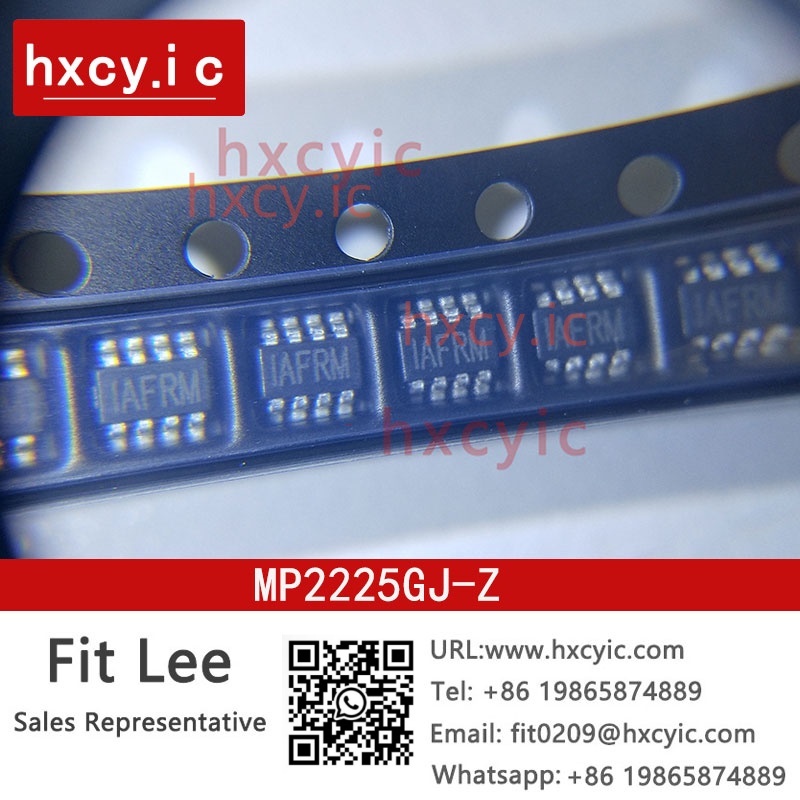

Order Monolithic Power Systems Inc. MP2225GJ-Z on Hxcy.IC. Confirm available stock and prices, check the product specifications for MP2225GJ-Z,and place an order online.Contact Email:Fit0209@hxcyic.com

DESCRIPTION
The MP2225 is a high- frequency, Synchronous,rectified, step- down, switch- mode converterwith built- in power MOSFETs. It offers a verycompact solution to achieve a 5A output currentwith excellent load and line regulation over awide input supply range. The MP2225 hassynchronous mode operation for higherefficiency over the output current load range.
Current- mode operation provides fast transientresponse and eases loop stabilization.
Full protection features include over- currentprotection and thermal shut down.
The MP2225 requires a minimal number ofreadily- available standard external components,and is available in a space- saving 8- pinTSOT23 package.

FEATURES
● Wide 4.5V-to-18V Operating Input Range
● Adjustab leOutput Voltage as low as 0.6V
● Low 47mΩ/18mΩ Rds(on) of Internal Power MOSFETs
● High Efficiency up to 97%
● Fixed 500kHz Switching Frequency
● Synchronizes from a 200kHz-to-2MHz External Clock
● 2.4ms Internal Soft-Start Time
● 1% Reference Accuracy at Room Temperature
● Internal Power save Mode
● OCP with hicc up mode
● Available in 8-pin TSOT23
APPLICATIONS
● Flat-Panel Television and Monitors
● Notebook Systems and I/O Power
● Digital Set-Top boxes
● Distributed Power Systems
