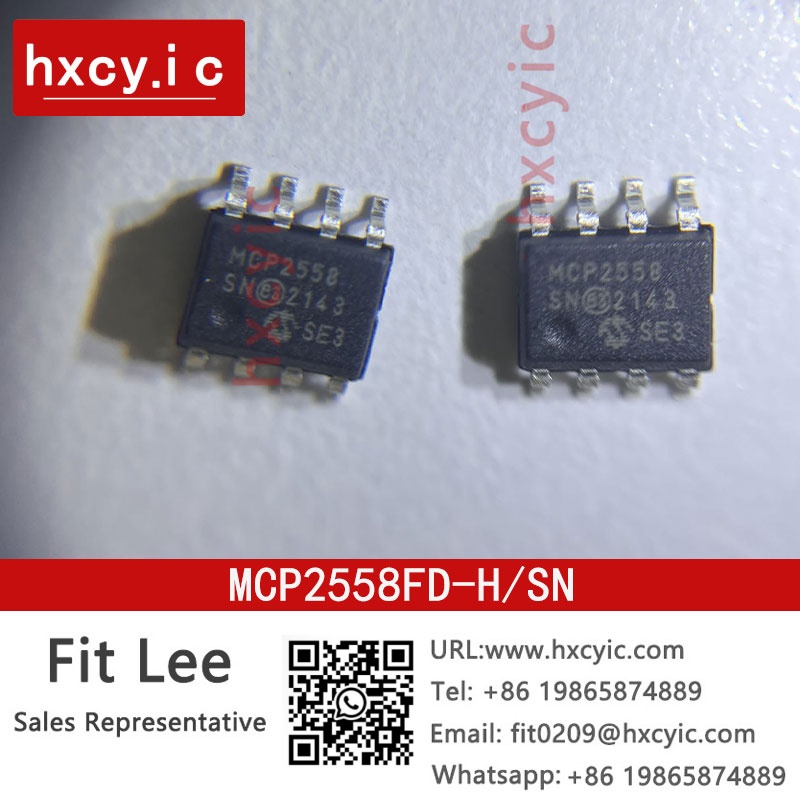

Order Microchip Technology MCP2558FD-H/SN on Hxcy.IC. Confirm available stock and prices, check the product specifications for MCP2558FD-H/SN,and place an order online.Contact Email:Fit0209@hxcyic.com

The MCP2557FD/8FD CAN transceiver family is designed for high- speed CAN FD applications with up to 8 Mbps communication speed. The maximum prop- agation delay was improved to support longer bus length.
The device meets automotive requirements for CAN FD bit rates exceeding 2 Mbps, low quiescent current, electromagnetic compatibility (EMC) and electrostatic discharge (ESD).

Features
Silent Mode is Useful in the Following Applications:
- Disables transmitter in redundant systems
- Implements babbling idiot protection
- Tests connection of bus medium
- Prevents a faulty CAN controller from disrupting all network communications
·Optimized for CAN FD at 2,5 and 8 Mbps Operation:
- Maximum propagation delay:120 ns
- Loop delay symmetry:±10%(2 Mbps)
·Meets or Exceeds Stringent Automotive Design Requirements Including" Hardware Require ments for LIN, CAN and FlexRay Interfaces in Automotive Applications", Version 1.3, May 2012:
- Conducted emissions at 2 Mbps with Common-Mode Choke (CMC)
- DPI at 2 Mbps with CMC
·Meets SAE J2962/2" Communication Transceiv ers Qualification Requirements–CAN"
- Passes radiated emissions at 2 Mbps without a CMC
·Meets Latest ISO/DIS-11898-2:2015
·Meets Latest SAE J2284-4 and -5 Working Drafts
·Digital Inputs of the MCP2557FD are Compatible to 3.3V and 5V Microcontrollers. RXD Output Requires a 5V Tolerant Microcontroller Input
·Functional Behavior Predictable Under all Supply Conditions:
- Device is in Unpowered mode if VDD drops below Power-on Reset (POR) level
- Device is in Unpowered mode if VIO drops below POR level
Applications
CAN 2.0 and CAN FD networks in Automotive, Industrial, Aerospace, Medical, and Consumer applications.
