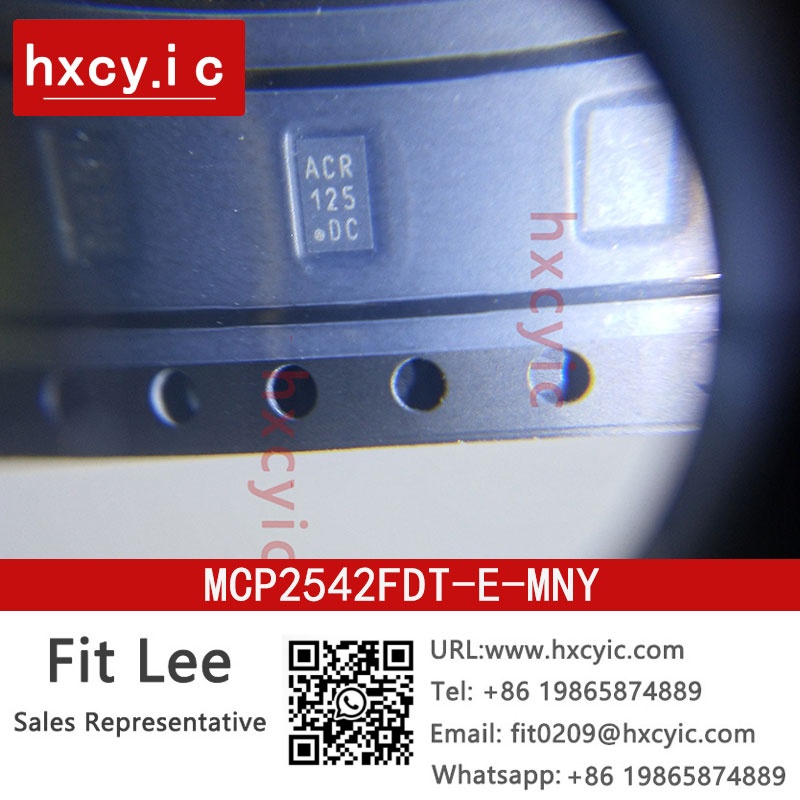

Order Microchip Technology MCP2542FDT-E/MNY on Hxcy.IC. Confirm available stock and prices, check the product specifications for MCP2542FDT-E/MNY,and place an order online.Contact Email:Fit0209@hxcyic.com

The MCP2542FD/4FD and MCP2542WFD/4WFD CAN transceiver family is designed for high- speed CAN FD applications up to 8 Mbps communication speed. The maximum propagation delay was improved to support longer bus length.
The device meets the automotive requirements for CAN FD bit rates exceeding 2 Mbps, low quiescent current, electromagnetic compatibility (EMC) and electrostatic discharge (ESD).
CAN 2.0 and CAN FD networks in Automotive, Industrial, Aerospace, Medical, and Consumer applications.

Features
·Supports CAN 2.0 and CAN with Flexible Data Rate (CAN FD) Physical Layer Transceiver Requirements
·Optimized for CAN FD at 2, 5 and 8 Mbps Operation
·Maximum propagation delay: 120 ns
·Loop delay symmetry:-10%/+10% (2 Mbps)
·MCP2542FD/4FD:
·Wake-up on CAN activity, 3.6 μs filter time
·MCP2542WFD/4WFD:
·Wake-up on Pattern (WUP), as specified in ISO11898-2:2015, 3.6 μs activity filter time
·Implement s ISO11898-2:2003, ISO11898-5:2007, and ISO/DIS11898-2:2015
·Qualification: AEC-Q100 Rev. G, Grade 0 (-40°C to +150°C)
·Very Low Standby Current (4 μA, typical)
·Vio Supply Pin to Interface Directly to CAN Controller and Microcontrollers with 1.8V to 5V I/O
·CAN Bus pins are Disconnected when Device is Unpowered
·An unpowered node or brown-out event will not load the CAN bus
·Device is unpowered if VDD or VIO drop below its POR level
·Detection of Ground Fault:
·Permanent Dominant detection on TXD
·Permanent Dominant detection on bus
·Automatic Thermal Shutdown Protection
·Suitable for 12V and 24V Systems
·Meets or Exceeds Stringent Automotive Design Requirements Including " Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications", Version 1.3, May 2012
·Conducted emissions @2 Mbps with Common-Mode Choke (CMC)
·Direct Power Injection (DPI) @2 Mbps with CMC
·Meets SAE J2962/2" Communication Transceiver Quali- fication Requirements-CAN"
·Radiated emissions @2 Mbps without a CMC
·High Electrostatic Discharge (ESD) Protection on CANH and CANL, meeting IEC61000-4-2 up to ±13 kV
·Temperature ranges:
·Extended (E):-40°C to +125°C
·High (H):-40°C to +150°C
