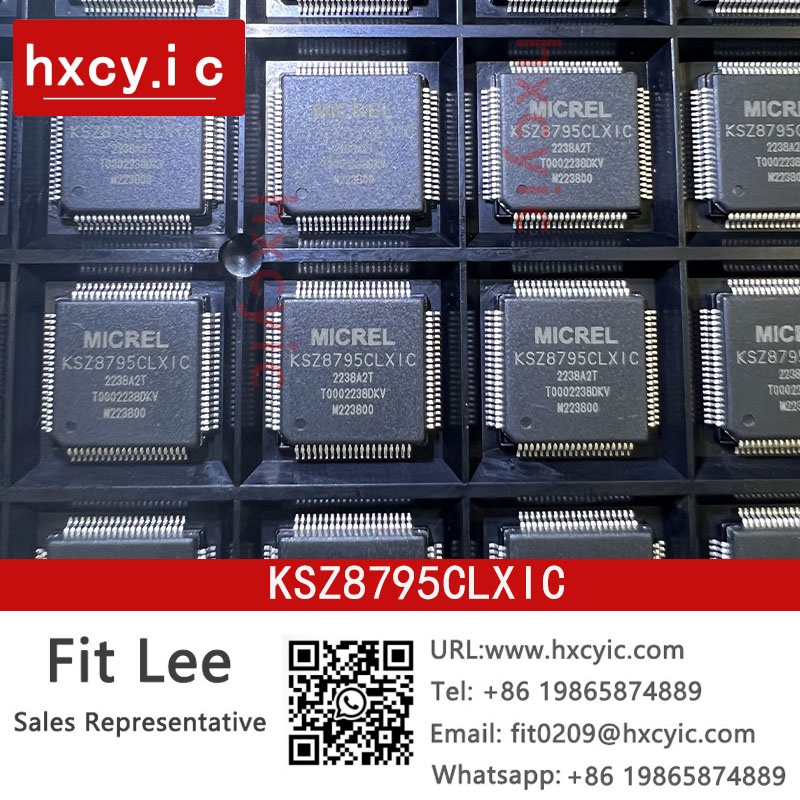

Order Microchip Technology KSZ8795CLXIC on Hxcy.IC. Confirm available stock and prices, check the product specifications for KSZ8795CLXIC,and place an order online.Contact Email:Fit0209@hxcyic.com

The KSZ8795CLX is a highly integrated, Layer 2- managed, 5- port switch with numerous features designed to reduce system cost. It is intended for cost- sensitive applications requiring four 10/100 Mbps copper ports and one 10/100/ 1000 Mbps Gigabit uplink port. The KSZ8795CLX incorporates a small package outline, lowest power consumption with internal biasing, and on- chip termination. Its extensive features set includes enhanced power management, program- mable rate limiting and priority ratio, tagged and port- based VLAN, port- based security and ACL rule- based packet fil- tering technology, quality- of- service (QoS) priority with four queues, management interfaces, enhanced MIB counters, high- performance memory bandwidth, and a shared memory- based switch fabric with non- blocking support. The KSZ8795CLX provides support for multiple CPU data interfaces to effectively address both current and emerging fast Ethernet and Gigabit Ethernet applications where the port 5 GMAC can be configured to any of GMII, RGMII, MII and RMII modes.
The KSZ8795CLX is built upon industry- leading Ethernet analog and digital technology, with features designed to off- load host processing and streamline the overall design.
·Four integrated 10/100BASE-T/TX MAC/PHYs
·One integrated 10/100/1000BASE-T/TX GMAC with selectable GMII, RGMII, MII, and RMII interfaces
·Small 80- pin LQFP package
A robust assortment of power- management features including Energy Efficient Ethernet (EEE), PME, and Wake- on- LAN (WoL) have been designed- in to satisfy energy- efficient environments.
KSZ8795CLX supports two management interface modes of SPI and MIIM only, SPI access all registers, MIIM mode access all PHYs registers through MDC/MDIO interface.
