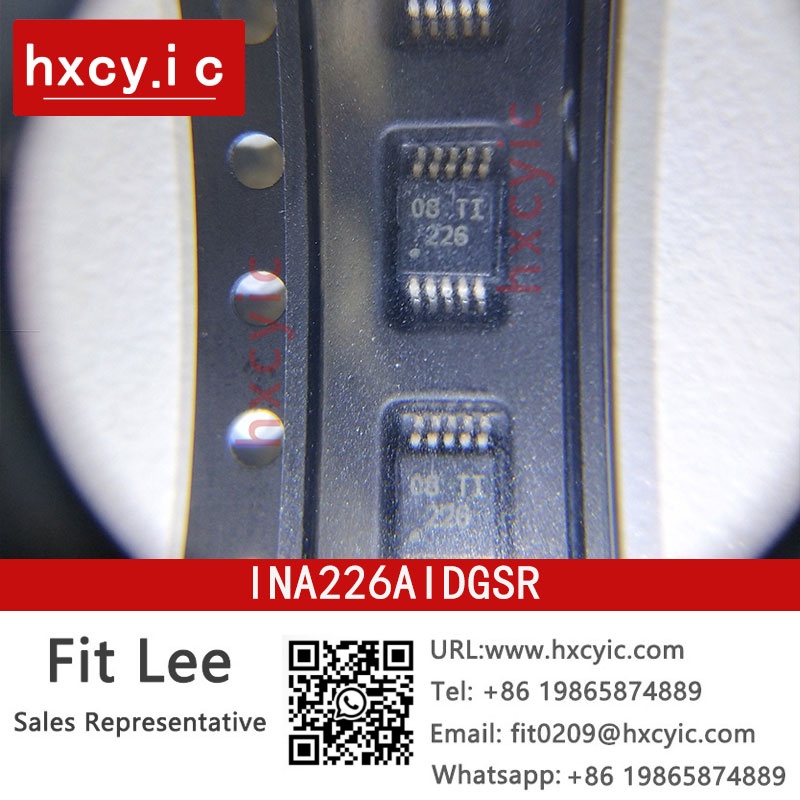

Order Texas Instruments INA226AIDGSR on Hxcy.IC. Confirm available stock and prices, check the product specifications for INA226AIDGSR,and place an order online.Contact Email:Fit0209@hxcyic.com

The INA226 is a current shunt and power monitor with an I2C™- or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts.

The INA226 senses current on common-mode bus voltages that can vary from 0V to 36V, independent of the supply voltage. The device operates from a single 2.7V to 5.5V supply, drawing a typical of 330µA of supply current. The device is specified over the operating temperature range between –40°C and 125°C and features up to 16 programmable addresses on the I2C-compatible interface.

• Senses bus voltages from 0V to 36V
• High-side or low-side sensing
• Reports current, voltage, and power
• High accuracy:
  • Gain error: 0.1% (maximum)
  • Offset: 10µV (maximum)
• Configurable averaging options
• 16 programmable addresses
• Operates from 2.7V to 5.5V power supply
• 10-pin DGS (VSSOP) package
