Description
The FOD8342 series is a 3.0 A output current gate drive optocoupler, capable of driving medium-power IGBT/MOSFETs. It is ideally suited for fastSwitching driving of power IGBT and MOSFET used in motor-control inverter applications, and high-performance power systems.
The FOD8342 series utilizes stretched body package to achieve 8 mm creepage and clearance distances (FOD8342T), and optimized IC design to achieve reliably high-insulation voltage and high-noise immunity.

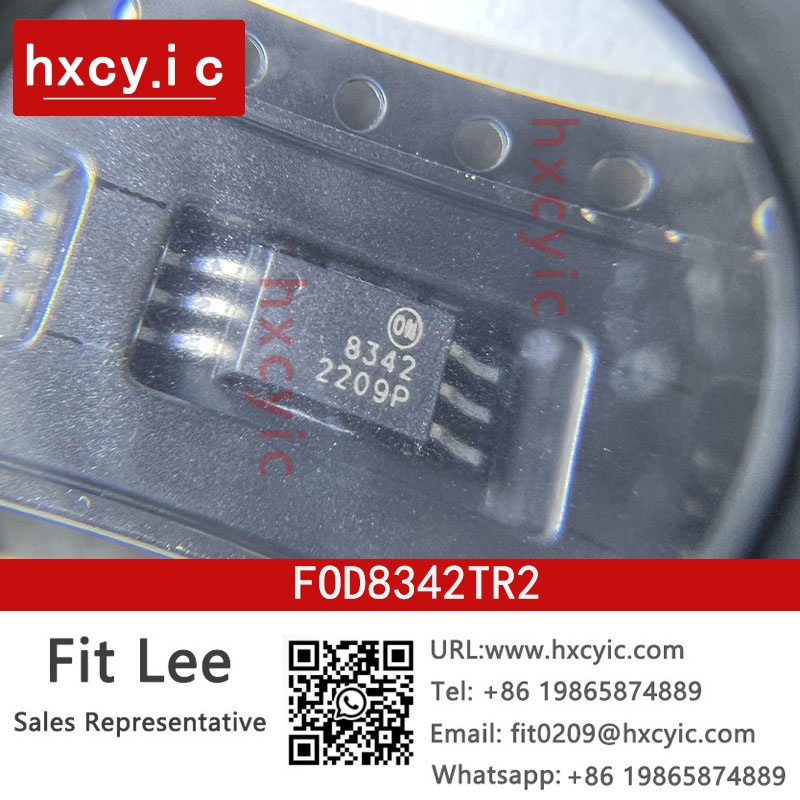

The FOD8342 series consists of an Aluminum Gallium Arsenide (AlGaAs) Light-Emitting Diode (LED) optically coupled to an integrated circuit with a high-speed driver for push-pull MOSFET output stage. The device is housed in a stretched body, 6-pin, small outline, plastic package.

Features
FOD8342T-8mm Creepage and Clearance Distance, and 0.4mm Insulation Distance to Achieve reliable and High-Voltage Insulation
3.0A Peak Output Current Driving Capability for Medium- Power IGBT/MOSFET
-Use of P-Channel MOSFETs at Output Stage Enables Output Voltage Swing Close to Supply Rail
20kV/μs Minimum Common Mode Rejection
Wide Supply Voltage Range:10V to 30V
Fast Switching Speed Over Full Operating Temperature Range
-210ns Maximum Propagation Delay
-65ns Maximum Pulse Width Distortion
Under-Voltage Lockout(UVLO) with Hysteresis
Extended Industrial Temperate Range:-40℃to 100℃
Safety and Regulatory Approvals:
-UL1577,5,000VRms for 1 minute
-DIN EN/IEC60747-5-5,1,140V Peak Working Insulation Voltage
Applications
AC and Brushless DC Motor Drives
Industrial Inverter
Uninterruptible Power Supply
Induction Heating
Isolated IGBT/ Power MOSFET Gate Drive
