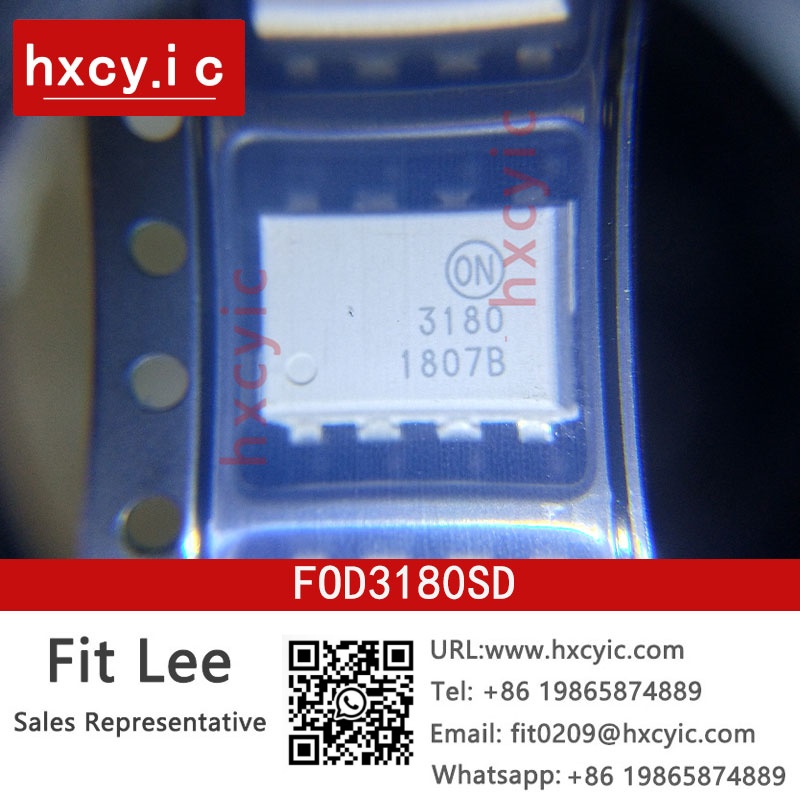

Order onsemi FOD3180SD on Hxcy.IC. Confirm available stock and prices, check the product specifications for FOD3180SD,and place an order online.Contact Email:Fit0209@hxcyic.com

The FOD3180 is a 2A Output Current, High SpeedMOSFET Gate Drive Optocoupler. It consists of aaluminium gallium arsenide (AlGaAs) light emitting diodeoptically coupled to a CMOS detector with PMOS andNMOS output power transistors integrated circuit powerstage. It is ideally suited for high frequency driving ofpower MOSFETs used in Plasma Display Panels(PDPs), motor control inverter applications and highperformance DC/DC converters.The device is packaged in an 8-pin dual in-line housingcompatible with 260°C reflow processes for lead freesolder compliance.

Features

 ■ Guaranteed operating temperature range of -40°C to +100°C

■ 2A minimum peak output current

■ High speed response: 200ns max propagation delay over temperature range

■ 250kHz maximum switching speed

■ 30ns typ pulse width distortion

■ Wide VCC operating range: 10V to 20V

■ 5000Vrms, 1 minute isolation

■ Under voltage lockout protection (UVLO) with hysteresis

■ Minimum creepage distance of 7.0mm

■ Minimum clearance distance of 7.0mm

■ C-UL, UL and VDE* approved

■ RDS(ON) of 1.5Ω (typ.) offers lower power dissipation

■ 15kV/µs minimum common mode rejection Applications

■ Plasma Display Panel

■ High performance DC/DC convertor

■ High performance switch mode power supply

 ■ High performance uninterruptible power supply

■ Isolated Power MOSFET gate drive
