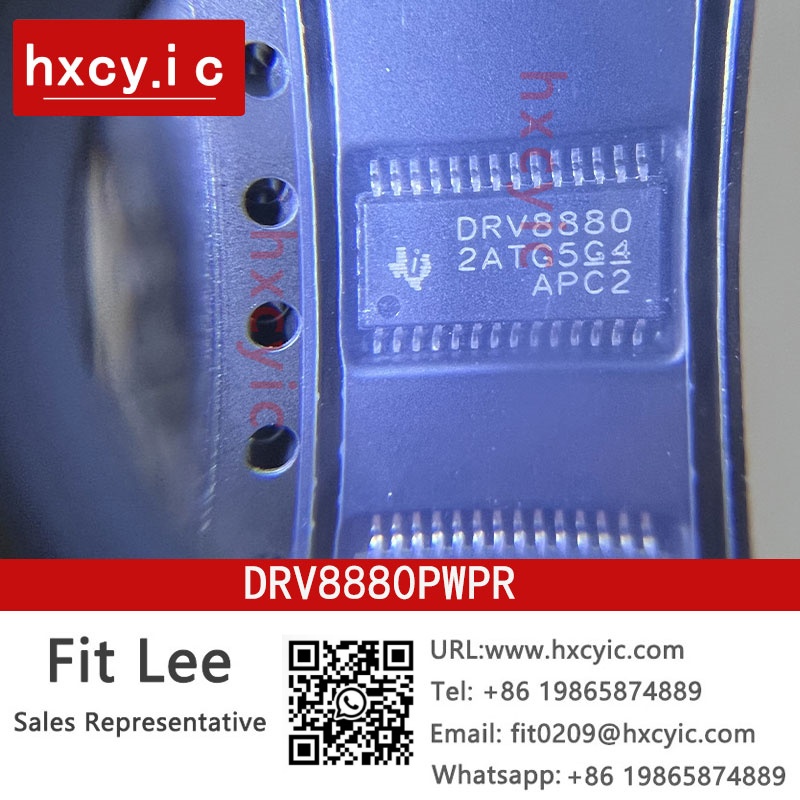

Description of DRV8880
DRV8880 is a bipolar stepper motor driver suitable for industrial applications. This device features two N-channel power metal-oxide-semiconductor field-effect transistors (MOSFET) H-bridge drivers and a microstepping indexer. The DRV8880 is capable of driving a full-scale current of up to 2.0A or a root mean square (rms) current of 1.4A (with proper printed circuit board (PCB) grounding for heat dissipation, at 24V, TA=25°C).
AutoTune can automatically adjust the stepper motor to achieve optimal current regulation performance, and can compensate for motor variations and aging issues. Additionally, this device offers three decay modes: slow, fast, and mixed.
The STEP/DIR pin provides a simple control interface. The device can be configured in multiple step modes, ranging from full step mode to 1/16 step mode. With a dedicated nSLEEP pin, the device offers a low-power sleep mode, enabling ultra-low quiescent current standby.
The device incorporates the following protection functions: undervoltage, charge pump failure, overcurrent, short circuit, and overheat protection. Fault conditions are indicated through the nFAULT pin.

Characteristics of DRV8880
Micro-stepping motor driver
. STEP/DIR connection
. Micro-stepping indexer with a maximum resolution of 1/16
Non-cyclic and standard ½ step mode
Operating power supply voltage range of 6.5V to 45V
Multiple attenuation modes to support any motor
AutoTune"
Mixed attenuation
Slow decay
Rapid decay
Smooth step adaptive blanking time
Configurable off-time pulse width modulation (PWM) chopper
10, 20, or 30 seconds turn-off time
3.3V, 10mA low dropout (LDO) regulator
Low current sleep mode (28μA)
Small package size
28 HTSSOP (PowerPAD)
28 WQFN
Protection features
VM undervoltage lockout (UVL02)
. Logic Under Voltage (UVLO1)
. Charge pump voltage (CPUV)
Overcurrent Protection (OCP)
Latched Overcurrent Protection (OCP) mode
Retry Overcurrent Protection (OCP) mode
Thermal shutdown (TSD)
Fault condition indication pin (nFAULT)
