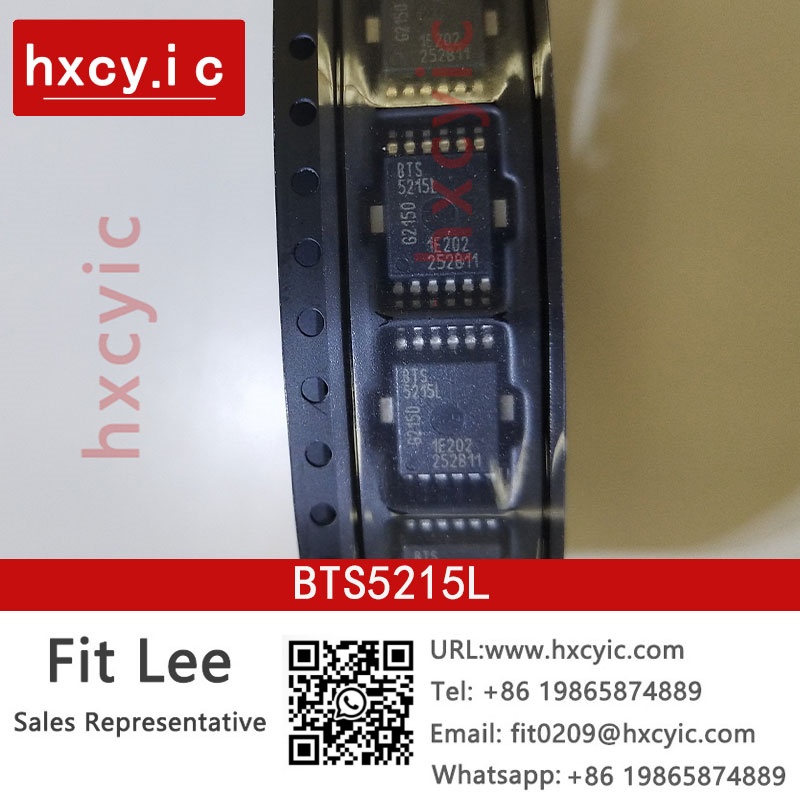

Order Infineon Technologies BTS5215L on Hxcy.IC. Confirm available stock and prices, check the product specifications for BTS5215L,and place an order online.Contact Email:Fit0209@hxcyic.com

Smart High-Side Power Switch Two Channels: 2 x 90m Status Feedback

General Description
·N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS* technology.
.Providing embedded protective functions
Applications
μC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads
All types of resistive, inductive and capacitve loads
Most suitable for loads with high inrush currents, so as lamps
Replaces electromechanical relays, fuses and discrete circuits

Basic Functions
Very low standby current
CMOS compatible input
Improved electromagnetic compatibility(EMC)
Fast demagnetization of inductive loads
Stable behaviour at undervoltage
Wide operating voltage range
Logic ground independent from load ground
Protection Functions
.Short circuit protection
.Overload protection
.Current limitation
.Thermal shutdown
Overvoltage protection (including load dump) with external resistor
Reverse battery protection with external resistor
Loss of ground and loss of Vbb protection
Electrostatic discharge protection (ESD)
Diagnostic Function
. Diagnostic feedback with open drain output
Open load detection in OFF-state
Feedback of thermal shutdown in ON-state
· AEC qualified
Green product (RoHS compliant)
