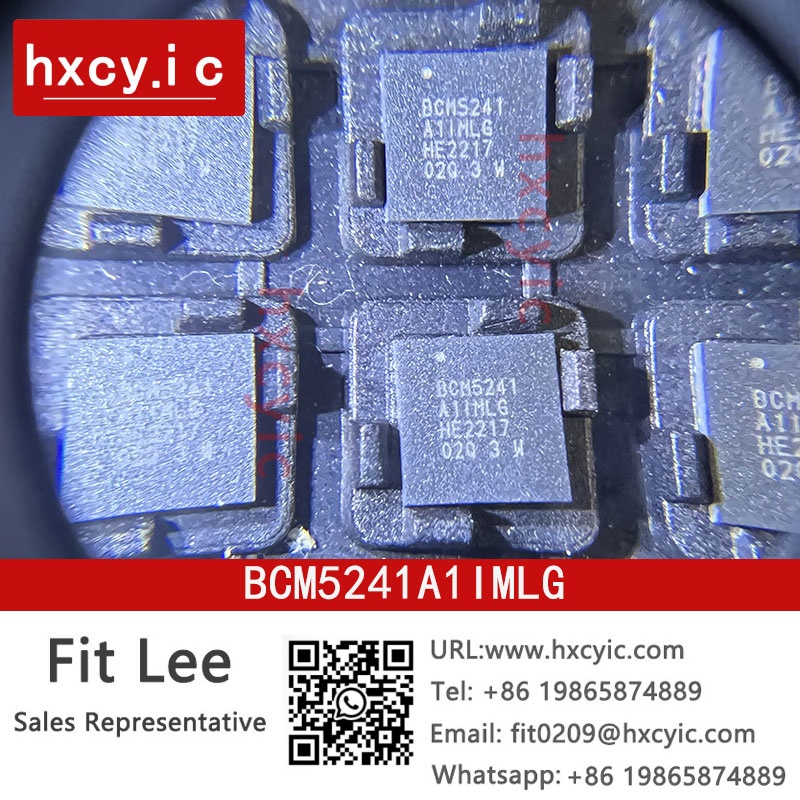

BCM5241A1IMLG is 10/100BASE-TX SINGLE-CHANNEL TRANSCEIVER

FEATURES
●10BASE-T/100BASE-TX/100BASE-EFX IEEE 802.3u fast Ethernet transceiver
●HP auto-MDIX
● Advanced cable diagnostics (CableCheckerTM)
●Robust CESD tolerance
● Operation from a single 3.3V or 2.5V supply source
● Unique energy detect circuit
●Low-power mode
●Super isolate mode
● Cable length up to 160 meters
● MII and 7-wire serial interface
●Power dissipation: <170 mW

SUMMARY OF BENEFITS
●DSP-based architecture to ensure performance over temperature, voltage and process variation.
- Field proven in over one billion Fast Ethernet ports.
- Superior ability to link and lower BER in marginal cable plants, relative to analog solutions.
- Greater ATE coverage results in fewer field failures.
●Improved ease of use and installation, reduced support cost.
- Straight-through or cross-over cables accommodated independent of installation.
- Advanced cable diagnostic features to enable remote monitoring and debug of cabling infrastructure.
- Resistance to CESD to reduce product destruction and product returns.
●Flexible power supply options.
Low power and intelligent power management.
- Increased active working time.
- Prolonged battery life in active standby.
- Increased reliability.
Control of network interaction on start up.
