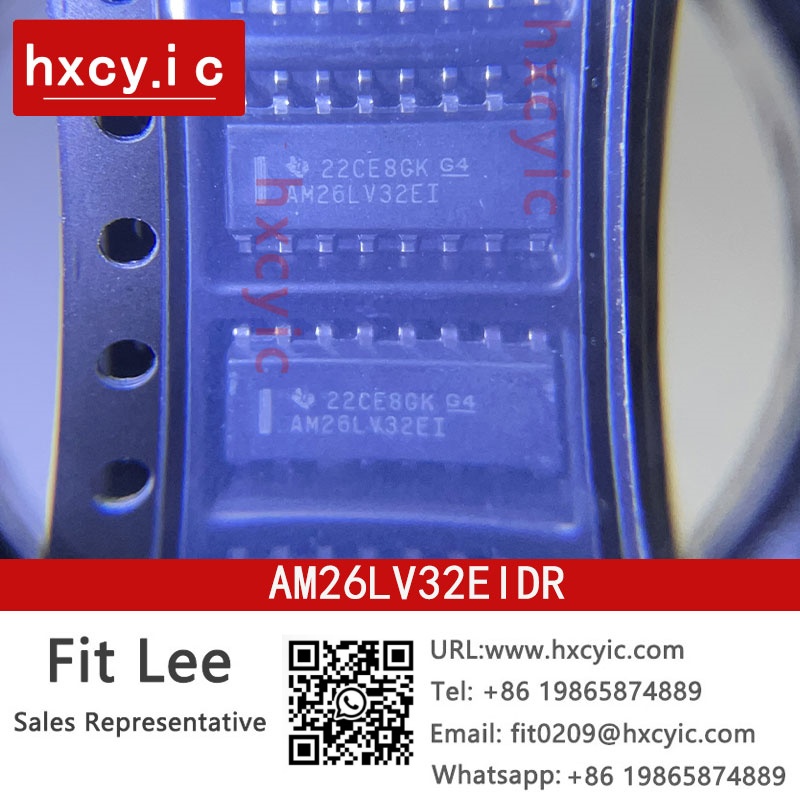

Order Texas Instruments AM26LV32EIDR on Hxcy.IC. Confirm available stock and prices, check the product specifications for AM26LV32EIDR,and place an order online.Contact Email:Fit0209@hxcyic.com

The AM26LV32E device consists of quadruple differential line receivers with 3-state outputs. This device is designed to meet TIA/EIA-422-B and ITU recommendation V.11 drivers with reduced supply voltage. The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The 3-state outputs permit connection directly to a bus-organized system. The AM26LV32E has an internal fail-safe circuitry that prevents the device from putting an unknown voltage signal at the receiver outputs. In the open fail-safe, a high state is produced at the respective output. This device is supported for partial-power-down applications using I off. I off circuitry disables the outputs, preventing damaging current back-flow through the device when it is powered down.

• Meets or exceeds standard TIA/EIA-422-B and ITU recommendation V.11
• Operates from a single 3.3-V power supply
• Switching rates up to 32 MHz
• ESD Protection for RS422 bus pins (See ESD Ratings)
• Low power dissipation: 27 mW typical
• Open circuit fail-safe
• ±7-V Common-mode input voltage range with ±200-mV sensitivity
• Accepts 5-V logic inputs with 3.3-V supply (enable inputs)
• Input hysteresis: 35 mV typical
• Pin-to-pin compatible with AM26C32, AM26LS32
• I off Supports partial-power-down mode operation
