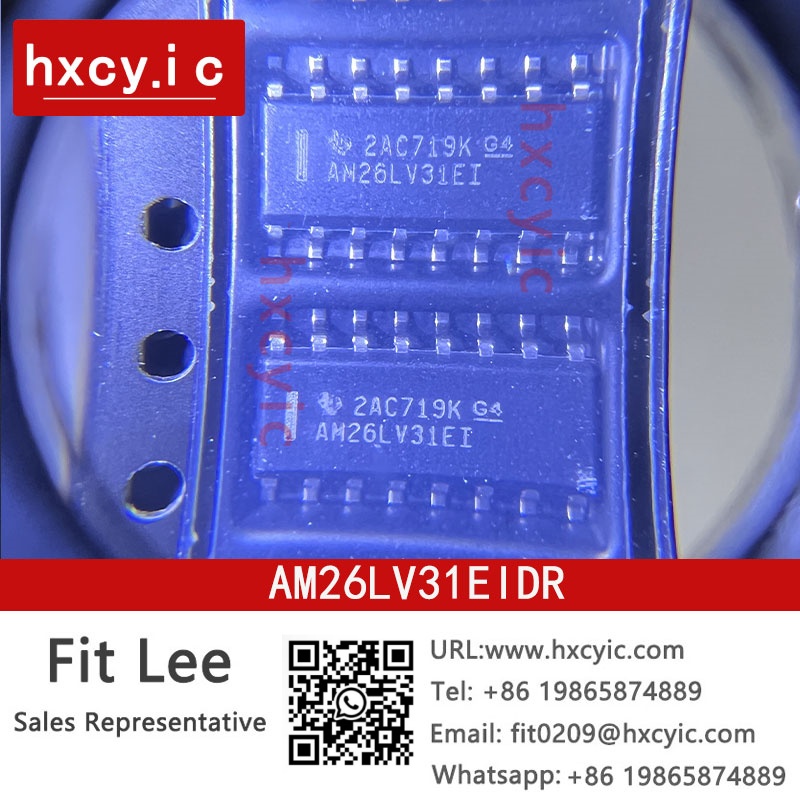

The AM26LV31E is a quadruple differential line driver with 3-state outputs. This driver has ±15kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8kV ESD (IEC61000-4-2, Contact Discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU Recommendation V.11 drivers with reduced supply voltage.

The device is optimized for balanced-bus transmission at switching rates up to 32MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines, and provide a high impedance in the power-off condition.

The AM26LV31EI is characterized for operation from –40°C to +85°C.

• Meets or exceeds standards TIA/EIA-422-B and ITU recommendation V.11
• Operates from a single 3.3V power supply
• ESD Protection for RS422 bus pins
  • ±15-kV Human-body model (HBM)
  • ±8-kV IEC61000-4-2, Contact discharge
  • ±15-kV IEC61000-4-2, Air-gap discharge
• Switching rates up to 32MHz
• Propagation delay time: 8ns typical
• Pulse skew time: 500ps typical
• High output-drive current: ±30mA
• Controlled rise and fall times: 5ns typical
• Differential output voltage with 100Ω load: 2.6V typical
• Accepts 5V logic inputs with 3.3V supply
• Ioff supports partial-power-down mode operation
• Driver output short-protection circuit
• Glitch-free power-up and power-down protection
• Package options: SO, SOIC, TSSOP, VQFN
