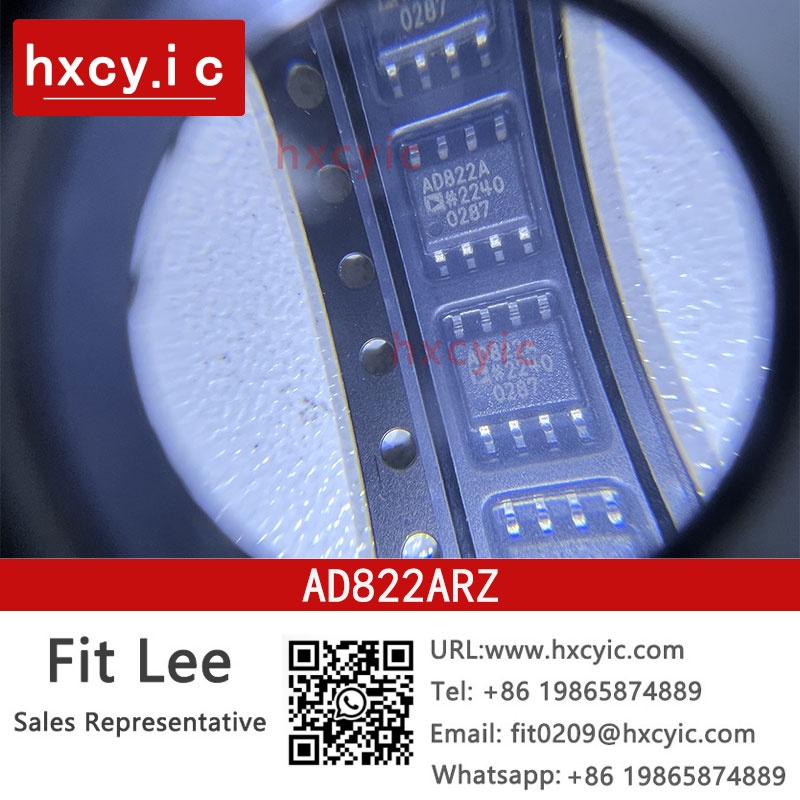

Analog Devices AD822ARZ on Hxcy.IC. Confirm available stock and prices, check the product specifications for AD822ARZ,and place an order online.Contact Email:Fit0209@hxcyic.com

The AD822 is a dual precision, low power FET input op amp that can operate from a single supply of 5 V to 30 V or dual supplies of ±2.5 V to ±15 V. It has true single-supply capability with an input voltage range extending below the negative rail, allowing the AD822 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range.

Offset voltage of 800 μV maximum, offset voltage drift of 2 μV/°C, input bias currents below 25 pA, and low input voltage noise provide dc precision with source impedances up to a gigaohm. The 1.8 MHz unity-gain bandwidth, –93 dB THD at 10 kHz, and 3 V/μs slew rate are provided with a low supply current of 800 μA per amplifier.

Applications

· Battery-powered precision instrumentation

· Photodiode preamps

· Active filters

· 12-bit to 14-bit data acquisition systems

· Medical instrumentation

· Low power references and regulators

The AD822-EP supports defense and aerospace applications (AQEC standard)

· True single-supply operation

o Output swings rail-to-rail

o Input voltage range extends below ground

o Single-supply capability from  5 V to 30 V

o Dual-supply capability from ±2.5 V to ±15 V

· High load drive

·

o Capacitive load drive of 350 pF, G = +1

o Minimum output current of 15 mA

· See data sheet for additional features

AD822-EP supports defense and aerospace applications (AQEC standard)

· Download AD822-EP data sheet (pdf)

· Military temperature range (−55°C to +125°C)

· Controlled manufacturing baseline

· One assembly/test site

· One fabrication site

· Enhanced product change notification

· Qualification data available on request

· V62/12636 DSCC Drawing Number

· True single-supply operation

o Output swings rail-to-rail

o Input voltage range extends below ground

o Single-supply capability from  5 V to 30 V

o Dual-supply capability from ±2.5 V to ±15 V

· High load drive

·

o Capacitive load drive of 350 pF, G = +1

o Minimum output current of 15 mA

· See data sheet for additional features
